The 24V Eco LED Bars, just like our 24V LED Bars , aims to create a new lighting concept and considerably reduce even more energy consumptions than previous versions.
Color temperature tolerance of 3 SDCM MacAdam ellipses, defined by ANSI C78.377:2011
Energy Efficiency Class: A+ (EU 874-2012)
LEDs are classified as Risk Group 1 according standard EN62471 Photobiological Safety of Lamps and Lamp Systems.
Our polycarbonate lent Trirex 3030IR, meets the standard for Food contact FDA 21CFR 177.1580 and (EU) No. 10/2011 for European Union
A great flexibility of sizes, (10cm to 220cm) allows to adapt the sizes and luminosity to each project.
With easy installation, allows the use of individual bars for each of the sizes and or join several bars in a continuous line so that the space is suitably illuminated.
- 10cm
- 17cm
- 25cm
- 30cm
- 40cm
- 47cm
- 55cm
- 60cm
- 70cm
- 80cm
- 85cm
- 90cm
- 100cm
- 105cm
- 115cm
- 120cm
- 130cm
- 140cm
- 145cm
- 150cm
- 160cm
- 170cm
- 175cm
- 180cm
- 190cm
- 195cm
- 200cm
- 210cm
- 220cm
- 225cm
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 30 mA Power 0.7 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 7 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:94 F:110 G:79 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.
LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11007532151 LLED Barra 24V 10 WW303 HE ECO DL Clear 80 114 3045 ± 84 Warm 80 Clear 11007524151 LLED Barra 24V 10 NW403 ECO DL Clear 78 111 3986 ± 144 Neutral 80 Clear 11007534151 LLED Barra 24V 10 NW403 HE ECO DL Clear 84 119 3986 ± 144 Neutral 80 Clear 11007525151 LLED Barra 24V 10 CW503 ECO DL Clear 78 111 5029 ± 186 Cool 80 Clear 11007536151 LLED Barra 24V 10 CW573 HE ECO DL Clear 84 119 5668 ± 207 Cool 80 Clear 11007527151 LLED Barra 24V 10 CW653 ECO DL Clear 78 111 6536 ± 279 Cool 80 Clear 11007532152 LLED Barra 24V 10 WW303 HE ECO DL Frost 66 94 3045 ± 84 Warm 80 Frost 11007524152 LLED Barra 24V 10 NW403 ECO DL Frost 62 88 3986 ± 144 Neutral 80 Frost 11007534152 LLED Barra 24V 10 NW403 HE ECO DL Frost 69 99 3986 ± 144 Neutral 80 Frost 11007525152 LLED Barra 24V 10 CW503 ECO DL Frost 62 88 5029 ± 186 Cool 80 Frost 11007536152 LLED Barra 24V 10 CW573 HE ECO DL Frost 69 99 5668 ± 207 Cool 80 Frost 11007527152 LLED Barra 24V 10 CW653 ECO DL Frost 62 88 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet
EEI Label Update 2019-11-11 Datasheet v1.59 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 60 mA Power 1.4 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 14 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:169 F:185 G:154 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11015032151 LLED Barra 24V 17 WW303 HE ECO DL Clear 160 114 3045 ± 84 Warm 80 Clear 11015024151 LLED Barra 24V 17 NW403 ECO DL Clear 155 111 3986 ± 144 Neutral 80 Clear 11015034151 LLED Barra 24V 17 NW403 HE ECO DL Clear 167 119 3986 ± 144 Neutral 80 Clear 11015025151 LLED Barra 24V 17 CW503 ECO DL Clear 155 111 5029 ± 186 Cool 80 Clear 11015036151 LLED Barra 24V 17 CW573 HE ECO DL Clear 167 119 5668 ± 207 Cool 80 Clear 11015027151 LLED Barra 24V 17 CW653 ECO DL Clear 155 111 6536 ± 279 Cool 80 Clear 11015032152 LLED Barra 24V 17 WW303 HE ECO DL Frost 132 94 3045 ± 84 Warm 80 Frost 11015024152 LLED Barra 24V 17 NW403 ECO DL Frost 123 88 3986 ± 144 Neutral 80 Frost 11015034152 LLED Barra 24V 17 NW403 HE ECO DL Frost 138 99 3986 ± 144 Neutral 80 Frost 11015025152 LLED Barra 24V 17 CW503 ECO DL Frost 123 88 5029 ± 186 Cool 80 Frost 11015036152 LLED Barra 24V 17 CW573 HE ECO DL Frost 138 99 5668 ± 207 Cool 80 Frost 11015027152 LLED Barra 24V 17 CW653 ECO DL Frost 123 88 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 90 mA Power 2.2 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 21 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:244 F:260 G:229 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11022532151 LLED Barra 24V 25 WW303 HE ECO DL Clear 240 109 3045 ± 84 Warm 80 Clear 11022524151 LLED Barra 24V 25 NW403 ECO DL Clear 233 106 3986 ± 144 Neutral 80 Clear 11022534151 LLED Barra 24V 25 NW403 HE ECO DL Clear 251 114 3986 ± 144 Neutral 80 Clear 11022525151 LLED Barra 24V 25 CW503 ECO DL Clear 233 106 5029 ± 186 Cool 80 Clear 11022536151 LLED Barra 24V 25 CW573 HE ECO DL Clear 251 114 5668 ± 207 Cool 80 Clear 11022527151 LLED Barra 24V 25 CW653 ECO DL Clear 233 106 6536 ± 279 Cool 80 Clear 11022532152 LLED Barra 24V 25 WW303 HE ECO DL Frost 198 90 3045 ± 84 Warm 80 Frost 11022524152 LLED Barra 24V 25 NW403 ECO DL Frost 185 84 3986 ± 144 Neutral 80 Frost 11022534152 LLED Barra 24V 25 NW403 HE ECO DL Frost 208 94 3986 ± 144 Neutral 80 Frost 11022525152 LLED Barra 24V 25 CW503 ECO DL Frost 185 84 5029 ± 186 Cool 80 Frost 11022536152 LLED Barra 24V 25 CW573 HE ECO DL Frost 208 94 5668 ± 207 Cool 80 Frost 11022527152 LLED Barra 24V 25 CW653 ECO DL Frost 185 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 120 mA Power 2.9 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 28 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:319 F:335 G:304 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11030032151 LLED Barra 24V 30 WW303 HE ECO DL Clear 320 110 3045 ± 84 Warm 80 Clear 11030024151 LLED Barra 24V 30 NW403 ECO DL Clear 310 107 3986 ± 144 Neutral 80 Clear 11030034151 LLED Barra 24V 30 NW403 HE ECO DL Clear 335 115 3986 ± 144 Neutral 80 Clear 11030025151 LLED Barra 24V 30 CW503 ECO DL Clear 310 107 5029 ± 186 Cool 80 Clear 11030036151 LLED Barra 24V 30 CW573 HE ECO DL Clear 335 115 5668 ± 207 Cool 80 Clear 11030027151 LLED Barra 24V 30 CW653 ECO DL Clear 310 107 6536 ± 279 Cool 80 Clear 11030032152 LLED Barra 24V 30 WW303 HE ECO DL Frost 265 91 3045 ± 84 Warm 80 Frost 11030024152 LLED Barra 24V 30 NW403 ECO DL Frost 247 85 3986 ± 144 Neutral 80 Frost 11030034152 LLED Barra 24V 30 NW403 HE ECO DL Frost 277 95 3986 ± 144 Neutral 80 Frost 11030025152 LLED Barra 24V 30 CW503 ECO DL Frost 247 85 5029 ± 186 Cool 80 Frost 11030036152 LLED Barra 24V 30 CW573 HE ECO DL Frost 277 95 5668 ± 207 Cool 80 Frost 11030027152 LLED Barra 24V 30 CW653 ECO DL Frost 247 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 150 mA Power 3.6 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 35 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:394 F:410 G:379 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11037532151 LLED Barra 24V 40 WW303 HE ECO DL Clear 400 111 3045 ± 84 Warm 80 Clear 11037524151 LLED Barra 24V 40 NW403 ECO DL Clear 388 108 3986 ± 144 Neutral 80 Clear 11037534151 LLED Barra 24V 40 NW403 HE ECO DL Clear 418 116 3986 ± 144 Neutral 80 Clear 11037525151 LLED Barra 24V 40 CW503 ECO DL Clear 388 108 5029 ± 186 Cool 80 Clear 11037536151 LLED Barra 24V 40 CW573 HE ECO DL Clear 418 116 5668 ± 207 Cool 80 Clear 11037527151 LLED Barra 24V 40 CW653 ECO DL Clear 388 108 6536 ± 279 Cool 80 Clear 11037532152 LLED Barra 24V 40 WW303 HE ECO DL Frost 331 92 3045 ± 84 Warm 80 Frost 11037524152 LLED Barra 24V 40 NW403 ECO DL Frost 309 86 3986 ± 144 Neutral 80 Frost 11037534152 LLED Barra 24V 40 NW403 HE ECO DL Frost 346 96 3986 ± 144 Neutral 80 Frost 11037525152 LLED Barra 24V 40 CW503 ECO DL Frost 309 86 5029 ± 186 Cool 80 Frost 11037536152 LLED Barra 24V 40 CW573 HE ECO DL Frost 346 96 5668 ± 207 Cool 80 Frost 11037527152 LLED Barra 24V 40 CW653 ECO DL Frost 309 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.61 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 180 mA Power 4.3 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 42 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:469 F:485 G:454 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11045032151 LLED Barra 24V 47 WW303 HE ECO DL Clear 480 112 3045 ± 84 Warm 80 Clear 11045024151 LLED Barra 24V 47 NW403 ECO DL Clear 466 108 3986 ± 144 Neutral 80 Clear 11045034151 LLED Barra 24V 47 NW403 HE ECO DL Clear 502 117 3986 ± 144 Neutral 80 Clear 11045025151 LLED Barra 24V 47 CW503 ECO DL Clear 466 108 5029 ± 186 Cool 80 Clear 11045036151 LLED Barra 24V 47 CW573 HE ECO DL Clear 502 117 5668 ± 207 Cool 80 Clear 11045027151 LLED Barra 24V 47 CW653 ECO DL Clear 466 108 6536 ± 279 Cool 80 Clear 11045032152 LLED Barra 24V 47 WW303 HE ECO DL Frost 397 92 3045 ± 84 Warm 80 Frost 11045024152 LLED Barra 24V 47 NW403 ECO DL Frost 370 86 3986 ± 144 Neutral 80 Frost 11045034152 LLED Barra 24V 47 NW403 HE ECO DL Frost 415 97 3986 ± 144 Neutral 80 Frost 11045025152 LLED Barra 24V 47 CW503 ECO DL Frost 370 86 5029 ± 186 Cool 80 Frost 11045036152 LLED Barra 24V 47 CW573 HE ECO DL Frost 415 97 5668 ± 207 Cool 80 Frost 11045027152 LLED Barra 24V 47 CW653 ECO DL Frost 370 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.58 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 210 mA Power 5.0 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 49 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:544 F:560 G:529 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11052532151 LLED Barra 24V 55 WW303 HE ECO DL Clear 560 112 3045 ± 84 Warm 80 Clear 11052524151 LLED Barra 24V 55 NW403 ECO DL Clear 543 109 3986 ± 144 Neutral 80 Clear 11052534151 LLED Barra 24V 55 NW403 HE ECO DL Clear 585 117 3986 ± 144 Neutral 80 Clear 11052525151 LLED Barra 24V 55 CW503 ECO DL Clear 543 109 5029 ± 186 Cool 80 Clear 11052536151 LLED Barra 24V 55 CW573 HE ECO DL Clear 585 117 5668 ± 207 Cool 80 Clear 11052527151 LLED Barra 24V 55 CW653 ECO DL Clear 543 109 6536 ± 279 Cool 80 Clear 11052532152 LLED Barra 24V 55 WW303 HE ECO DL Frost 463 93 3045 ± 84 Warm 80 Frost 11052524152 LLED Barra 24V 55 NW403 ECO DL Frost 432 86 3986 ± 144 Neutral 80 Frost 11052534152 LLED Barra 24V 55 NW403 HE ECO DL Frost 484 97 3986 ± 144 Neutral 80 Frost 11052525152 LLED Barra 24V 55 CW503 ECO DL Frost 432 86 5029 ± 186 Cool 80 Frost 11052536152 LLED Barra 24V 55 CW573 HE ECO DL Frost 484 97 5668 ± 207 Cool 80 Frost 11052527152 LLED Barra 24V 55 CW653 ECO DL Frost 432 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 240 mA Power 5.8 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 56 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:619 F:635 G:604 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11060032151 LLED Barra 24V 60 WW303 HE ECO DL Clear 640 110 3045 ± 84 Warm 80 Clear 11060024151 LLED Barra 24V 60 NW403 ECO DL Clear 621 107 3986 ± 144 Neutral 80 Clear 11060034151 LLED Barra 24V 60 NW403 HE ECO DL Clear 669 115 3986 ± 144 Neutral 80 Clear 11060025151 LLED Barra 24V 60 CW503 ECO DL Clear 621 107 5029 ± 186 Cool 80 Clear 11060036151 LLED Barra 24V 60 CW573 HE ECO DL Clear 669 115 5668 ± 207 Cool 80 Clear 11060027151 LLED Barra 24V 60 CW653 ECO DL Clear 621 107 6536 ± 279 Cool 80 Clear 11060032152 LLED Barra 24V 60 WW303 HE ECO DL Frost 529 91 3045 ± 84 Warm 80 Frost 11060024152 LLED Barra 24V 60 NW403 ECO DL Frost 494 85 3986 ± 144 Neutral 80 Frost 11060034152 LLED Barra 24V 60 NW403 HE ECO DL Frost 554 95 3986 ± 144 Neutral 80 Frost 11060025152 LLED Barra 24V 60 CW503 ECO DL Frost 494 85 5029 ± 186 Cool 80 Frost 11060036152 LLED Barra 24V 60 CW573 HE ECO DL Frost 554 95 5668 ± 207 Cool 80 Frost 11060027152 LLED Barra 24V 60 CW653 ECO DL Frost 494 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 270 mA Power 6.5 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 63 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:694 F:710 G:679 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11067532151 LLED Barra 24V 70 WW303 HE ECO DL Clear 720 111 3045 ± 84 Warm 80 Clear 11067524151 LLED Barra 24V 70 NW403 ECO DL Clear 699 107 3986 ± 144 Neutral 80 Clear 11067534151 LLED Barra 24V 70 NW403 HE ECO DL Clear 753 116 3986 ± 144 Neutral 80 Clear 11067525151 LLED Barra 24V 70 CW503 ECO DL Clear 699 107 5029 ± 186 Cool 80 Clear 11067536151 LLED Barra 24V 70 CW573 HE ECO DL Clear 753 116 5668 ± 207 Cool 80 Clear 11067527151 LLED Barra 24V 70 CW653 ECO DL Clear 699 107 6536 ± 279 Cool 80 Clear 11067532152 LLED Barra 24V 70 WW303 HE ECO DL Frost 595 92 3045 ± 84 Warm 80 Frost 11067524152 LLED Barra 24V 70 NW403 ECO DL Frost 556 85 3986 ± 144 Neutral 80 Frost 11067534152 LLED Barra 24V 70 NW403 HE ECO DL Frost 623 96 3986 ± 144 Neutral 80 Frost 11067525152 LLED Barra 24V 70 CW503 ECO DL Frost 556 85 5029 ± 186 Cool 80 Frost 11067536152 LLED Barra 24V 70 CW573 HE ECO DL Frost 623 96 5668 ± 207 Cool 80 Frost 11067527152 LLED Barra 24V 70 CW653 ECO DL Frost 556 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 300 mA Power 7.2 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 70 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:769 F:785 G:754 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11075032151 LLED Barra 24V 80 WW303 HE ECO DL Clear 800 111 3045 ± 84 Warm 80 Clear 11075024151 LLED Barra 24V 80 NW403 ECO DL Clear 776 108 3986 ± 144 Neutral 80 Clear 11075034151 LLED Barra 24V 80 NW403 HE ECO DL Clear 836 116 3986 ± 144 Neutral 80 Clear 11075025151 LLED Barra 24V 80 CW503 ECO DL Clear 776 108 5029 ± 186 Cool 80 Clear 11075036151 LLED Barra 24V 80 CW573 HE ECO DL Clear 836 116 5668 ± 207 Cool 80 Clear 11075027151 LLED Barra 24V 80 CW653 ECO DL Clear 776 108 6536 ± 279 Cool 80 Clear 11075032152 LLED Barra 24V 80 WW303 HE ECO DL Frost 661 92 3045 ± 84 Warm 80 Frost 11075024152 LLED Barra 24V 80 NW403 ECO DL Frost 617 86 3986 ± 144 Neutral 80 Frost 11075034152 LLED Barra 24V 80 NW403 HE ECO DL Frost 692 96 3986 ± 144 Neutral 80 Frost 11075025152 LLED Barra 24V 80 CW503 ECO DL Frost 617 86 5029 ± 186 Cool 80 Frost 11075036152 LLED Barra 24V 80 CW573 HE ECO DL Frost 692 96 5668 ± 207 Cool 80 Frost 11075027152 LLED Barra 24V 80 CW653 ECO DL Frost 617 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 330 mA Power 7.9 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 77 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:844 F:860 G:829 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11082532151 LLED Barra 24V 85 WW303 HE ECO DL Clear 879 111 3045 ± 84 Warm 80 Clear 11082524151 LLED Barra 24V 85 NW403 ECO DL Clear 854 108 3986 ± 144 Neutral 80 Clear 11082534151 LLED Barra 24V 85 NW403 HE ECO DL Clear 920 116 3986 ± 144 Neutral 80 Clear 11082525151 LLED Barra 24V 85 CW503 ECO DL Clear 854 108 5029 ± 186 Cool 80 Clear 11082536151 LLED Barra 24V 85 CW573 HE ECO DL Clear 920 116 5668 ± 207 Cool 80 Clear 11082527151 LLED Barra 24V 85 CW653 ECO DL Clear 854 108 6536 ± 279 Cool 80 Clear 11082532152 LLED Barra 24V 85 WW303 HE ECO DL Frost 728 92 3045 ± 84 Warm 80 Frost 11082524152 LLED Barra 24V 85 NW403 ECO DL Frost 679 86 3986 ± 144 Neutral 80 Frost 11082534152 LLED Barra 24V 85 NW403 HE ECO DL Frost 761 96 3986 ± 144 Neutral 80 Frost 11082525152 LLED Barra 24V 85 CW503 ECO DL Frost 679 86 5029 ± 186 Cool 80 Frost 11082536152 LLED Barra 24V 85 CW573 HE ECO DL Frost 761 96 5668 ± 207 Cool 80 Frost 11082527152 LLED Barra 24V 85 CW653 ECO DL Frost 679 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 360 mA Power 8.6 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 84 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:919 F:935 G:904 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11090032151 LLED Barra 24V 90 WW303 HE ECO DL Clear 959 112 3045 ± 84 Warm 80 Clear 11090024151 LLED Barra 24V 90 NW403 ECO DL Clear 931 108 3986 ± 144 Neutral 80 Clear 11090034151 LLED Barra 24V 90 NW403 HE ECO DL Clear 1004 117 3986 ± 144 Neutral 80 Clear 11090025151 LLED Barra 24V 90 CW503 ECO DL Clear 931 108 5029 ± 186 Cool 80 Clear 11090036151 LLED Barra 24V 90 CW573 HE ECO DL Clear 1004 117 5668 ± 207 Cool 80 Clear 11090027151 LLED Barra 24V 90 CW653 ECO DL Clear 931 108 6536 ± 279 Cool 80 Clear 11090032152 LLED Barra 24V 90 WW303 HE ECO DL Frost 794 92 3045 ± 84 Warm 80 Frost 11090024152 LLED Barra 24V 90 NW403 ECO DL Frost 741 86 3986 ± 144 Neutral 80 Frost 11090034152 LLED Barra 24V 90 NW403 HE ECO DL Frost 830 97 3986 ± 144 Neutral 80 Frost 11090025152 LLED Barra 24V 90 CW503 ECO DL Frost 741 86 5029 ± 186 Cool 80 Frost 11090036152 LLED Barra 24V 90 CW573 HE ECO DL Frost 830 97 5668 ± 207 Cool 80 Frost 11090027152 LLED Barra 24V 90 CW653 ECO DL Frost 741 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 390 mA Power 9.4 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 91 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:994 F:1010 G:979 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11097532151 LLED Barra 24V 100 WW303 HE ECO DL Clear 1039 111 3045 ± 84 Warm 80 Clear 11097524151 LLED Barra 24V 100 NW403 ECO DL Clear 1009 107 3986 ± 144 Neutral 80 Clear 11097534151 LLED Barra 24V 100 NW403 HE ECO DL Clear 1087 116 3986 ± 144 Neutral 80 Clear 11097525151 LLED Barra 24V 100 CW503 ECO DL Clear 1009 107 5029 ± 186 Cool 80 Clear 11097536151 LLED Barra 24V 100 CW573 HE ECO DL Clear 1087 116 5668 ± 207 Cool 80 Clear 11097527151 LLED Barra 24V 100 CW653 ECO DL Clear 1009 107 6536 ± 279 Cool 80 Clear 11097532152 LLED Barra 24V 100 WW303 HE ECO DL Frost 860 91 3045 ± 84 Warm 80 Frost 11097524152 LLED Barra 24V 100 NW403 ECO DL Frost 803 85 3986 ± 144 Neutral 80 Frost 11097534152 LLED Barra 24V 100 NW403 HE ECO DL Frost 899 96 3986 ± 144 Neutral 80 Frost 11097525152 LLED Barra 24V 100 CW503 ECO DL Frost 803 85 5029 ± 186 Cool 80 Frost 11097536152 LLED Barra 24V 100 CW573 HE ECO DL Frost 899 96 5668 ± 207 Cool 80 Frost 11097527152 LLED Barra 24V 100 CW653 ECO DL Frost 803 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.57 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 420 mA Power 10.1 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 98 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1069 F:1085 G:1054 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11105032151 LLED Barra 24V 105 WW303 HE ECO DL Clear 1119 111 3045 ± 84 Warm 80 Clear 11105024151 LLED Barra 24V 105 NW403 ECO DL Clear 1087 108 3986 ± 144 Neutral 80 Clear 11105034151 LLED Barra 24V 105 NW403 HE ECO DL Clear 1171 116 3986 ± 144 Neutral 80 Clear 11105025151 LLED Barra 24V 105 CW503 ECO DL Clear 1087 108 5029 ± 186 Cool 80 Clear 11105036151 LLED Barra 24V 105 CW573 HE ECO DL Clear 1171 116 5668 ± 207 Cool 80 Clear 11105027151 LLED Barra 24V 105 CW653 ECO DL Clear 1087 108 6536 ± 279 Cool 80 Clear 11105032152 LLED Barra 24V 105 WW303 HE ECO DL Frost 926 92 3045 ± 84 Warm 80 Frost 11105024152 LLED Barra 24V 105 NW403 ECO DL Frost 864 86 3986 ± 144 Neutral 80 Frost 11105034152 LLED Barra 24V 105 NW403 HE ECO DL Frost 969 96 3986 ± 144 Neutral 80 Frost 11105025152 LLED Barra 24V 105 CW503 ECO DL Frost 864 86 5029 ± 186 Cool 80 Frost 11105036152 LLED Barra 24V 105 CW573 HE ECO DL Frost 969 96 5668 ± 207 Cool 80 Frost 11105027152 LLED Barra 24V 105 CW653 ECO DL Frost 864 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 450 mA Power 10.8 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 105 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1144 F:1160 G:1129 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11112532151 LLED Barra 24V 115 WW303 HE ECO DL Clear 1199 111 3045 ± 84 Warm 80 Clear 11112524151 LLED Barra 24V 115 NW403 ECO DL Clear 1164 108 3986 ± 144 Neutral 80 Clear 11112534151 LLED Barra 24V 115 NW403 HE ECO DL Clear 1255 116 3986 ± 144 Neutral 80 Clear 11112525151 LLED Barra 24V 115 CW503 ECO DL Clear 1164 108 5029 ± 186 Cool 80 Clear 11112536151 LLED Barra 24V 115 CW573 HE ECO DL Clear 1255 116 5668 ± 207 Cool 80 Clear 11112527151 LLED Barra 24V 115 CW653 ECO DL Clear 1164 108 6536 ± 279 Cool 80 Clear 11112532152 LLED Barra 24V 115 WW303 HE ECO DL Frost 992 92 3045 ± 84 Warm 80 Frost 11112524152 LLED Barra 24V 115 NW403 ECO DL Frost 926 86 3986 ± 144 Neutral 80 Frost 11112534152 LLED Barra 24V 115 NW403 HE ECO DL Frost 1038 96 3986 ± 144 Neutral 80 Frost 11112525152 LLED Barra 24V 115 CW503 ECO DL Frost 926 86 5029 ± 186 Cool 80 Frost 11112536152 LLED Barra 24V 115 CW573 HE ECO DL Frost 1038 96 5668 ± 207 Cool 80 Frost 11112527152 LLED Barra 24V 115 CW653 ECO DL Frost 926 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 480 mA Power 11.5 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 112 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1219 F:1235 G:1204 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11120032151 LLED Barra 24V 120 WW303 HE ECO DL Clear 1279 111 3045 ± 84 Warm 80 Clear 11120024151 LLED Barra 24V 120 NW403 ECO DL Clear 1242 108 3986 ± 144 Neutral 80 Clear 11120034151 LLED Barra 24V 120 NW403 HE ECO DL Clear 1338 116 3986 ± 144 Neutral 80 Clear 11120025151 LLED Barra 24V 120 CW503 ECO DL Clear 1242 108 5029 ± 186 Cool 80 Clear 11120036151 LLED Barra 24V 120 CW573 HE ECO DL Clear 1338 116 5668 ± 207 Cool 80 Clear 11120027151 LLED Barra 24V 120 CW653 ECO DL Clear 1242 108 6536 ± 279 Cool 80 Clear 11120032152 LLED Barra 24V 120 WW303 HE ECO DL Frost 1058 92 3045 ± 84 Warm 80 Frost 11120024152 LLED Barra 24V 120 NW403 ECO DL Frost 988 86 3986 ± 144 Neutral 80 Frost 11120034152 LLED Barra 24V 120 NW403 HE ECO DL Frost 1107 96 3986 ± 144 Neutral 80 Frost 11120025152 LLED Barra 24V 120 CW503 ECO DL Frost 988 86 5029 ± 186 Cool 80 Frost 11120036152 LLED Barra 24V 120 CW573 HE ECO DL Frost 1107 96 5668 ± 207 Cool 80 Frost 11120027152 LLED Barra 24V 120 CW653 ECO DL Frost 988 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 510 mA Power 12.2 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 119 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1294 F:1310 G:1279 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11127532151 LLED Barra 24V 130 WW303 HE ECO DL Clear 1359 111 3045 ± 84 Warm 80 Clear 11127524151 LLED Barra 24V 130 NW403 ECO DL Clear 1319 108 3986 ± 144 Neutral 80 Clear 11127534151 LLED Barra 24V 130 NW403 HE ECO DL Clear 1422 117 3986 ± 144 Neutral 80 Clear 11127525151 LLED Barra 24V 130 CW503 ECO DL Clear 1319 108 5029 ± 186 Cool 80 Clear 11127536151 LLED Barra 24V 130 CW573 HE ECO DL Clear 1422 117 5668 ± 207 Cool 80 Clear 11127527151 LLED Barra 24V 130 CW653 ECO DL Clear 1319 108 6536 ± 279 Cool 80 Clear 11127532152 LLED Barra 24V 130 WW303 HE ECO DL Frost 1124 92 3045 ± 84 Warm 80 Frost 11127524152 LLED Barra 24V 130 NW403 ECO DL Frost 1050 86 3986 ± 144 Neutral 80 Frost 11127534152 LLED Barra 24V 130 NW403 HE ECO DL Frost 1176 96 3986 ± 144 Neutral 80 Frost 11127525152 LLED Barra 24V 130 CW503 ECO DL Frost 1050 86 5029 ± 186 Cool 80 Frost 11127536152 LLED Barra 24V 130 CW573 HE ECO DL Frost 1176 96 5668 ± 207 Cool 80 Frost 11127527152 LLED Barra 24V 130 CW653 ECO DL Frost 1050 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 540 mA Power 13.0 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 126 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1369 F:1385 G:1354 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11135032151 LLED Barra 24V 140 WW303 HE ECO DL Clear 1439 111 3045 ± 84 Warm 80 Clear 11135024151 LLED Barra 24V 140 NW403 ECO DL Clear 1397 107 3986 ± 144 Neutral 80 Clear 11135034151 LLED Barra 24V 140 NW403 HE ECO DL Clear 1506 116 3986 ± 144 Neutral 80 Clear 11135025151 LLED Barra 24V 140 CW503 ECO DL Clear 1397 107 5029 ± 186 Cool 80 Clear 11135036151 LLED Barra 24V 140 CW573 HE ECO DL Clear 1506 116 5668 ± 207 Cool 80 Clear 11135027151 LLED Barra 24V 140 CW653 ECO DL Clear 1397 107 6536 ± 279 Cool 80 Clear 11135032152 LLED Barra 24V 140 WW303 HE ECO DL Frost 1190 92 3045 ± 84 Warm 80 Frost 11135024152 LLED Barra 24V 140 NW403 ECO DL Frost 1111 85 3986 ± 144 Neutral 80 Frost 11135034152 LLED Barra 24V 140 NW403 HE ECO DL Frost 1245 96 3986 ± 144 Neutral 80 Frost 11135025152 LLED Barra 24V 140 CW503 ECO DL Frost 1111 85 5029 ± 186 Cool 80 Frost 11135036152 LLED Barra 24V 140 CW573 HE ECO DL Frost 1245 96 5668 ± 207 Cool 80 Frost 11135027152 LLED Barra 24V 140 CW653 ECO DL Frost 1111 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 570 mA Power 13.7 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 133 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1444 F:1460 G:1429 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11142532151 LLED Barra 24V 145 WW303 HE ECO DL Clear 1519 111 3045 ± 84 Warm 80 Clear 11142524151 LLED Barra 24V 145 NW403 ECO DL Clear 1475 108 3986 ± 144 Neutral 80 Clear 11142534151 LLED Barra 24V 145 NW403 HE ECO DL Clear 1589 116 3986 ± 144 Neutral 80 Clear 11142525151 LLED Barra 24V 145 CW503 ECO DL Clear 1475 108 5029 ± 186 Cool 80 Clear 11142536151 LLED Barra 24V 145 CW573 HE ECO DL Clear 1589 116 5668 ± 207 Cool 80 Clear 11142527151 LLED Barra 24V 145 CW653 ECO DL Clear 1475 108 6536 ± 279 Cool 80 Clear 11142532152 LLED Barra 24V 145 WW303 HE ECO DL Frost 1257 92 3045 ± 84 Warm 80 Frost 11142524152 LLED Barra 24V 145 NW403 ECO DL Frost 1173 86 3986 ± 144 Neutral 80 Frost 11142534152 LLED Barra 24V 145 NW403 HE ECO DL Frost 1315 96 3986 ± 144 Neutral 80 Frost 11142525152 LLED Barra 24V 145 CW503 ECO DL Frost 1173 86 5029 ± 186 Cool 80 Frost 11142536152 LLED Barra 24V 145 CW573 HE ECO DL Frost 1315 96 5668 ± 207 Cool 80 Frost 11142527152 LLED Barra 24V 145 CW653 ECO DL Frost 1173 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 600 mA Power 14.4 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 140 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1519 F:1535 G:1504 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11150032151 LLED Barra 24V 150 WW303 HE ECO DL Clear 1599 111 3045 ± 84 Warm 80 Clear 11150024151 LLED Barra 24V 150 NW403 ECO DL Clear 1552 108 3986 ± 144 Neutral 80 Clear 11150034151 LLED Barra 24V 150 NW403 HE ECO DL Clear 1673 116 3986 ± 144 Neutral 80 Clear 11150025151 LLED Barra 24V 150 CW503 ECO DL Clear 1331 92 5029 ± 186 Cool 80 Clear 11150036151 LLED Barra 24V 150 CW573 HE ECO DL Clear 1673 116 5668 ± 207 Cool 80 Clear 11150027151 LLED Barra 24V 150 CW653 ECO DL Clear 1552 108 6536 ± 279 Cool 80 Clear 11150032152 LLED Barra 24V 150 WW303 HE ECO DL Frost 1323 92 3045 ± 84 Warm 80 Frost 11150024152 LLED Barra 24V 150 NW403 ECO DL Frost 1235 86 3986 ± 144 Neutral 80 Frost 11150034152 LLED Barra 24V 150 NW403 HE ECO DL Frost 1384 96 3986 ± 144 Neutral 80 Frost 11150025152 LLED Barra 24V 150 CW503 ECO DL Frost 1058 74 5029 ± 186 Cool 80 Frost 11150036152 LLED Barra 24V 150 CW573 HE ECO DL Frost 1384 96 5668 ± 207 Cool 80 Frost 11150027152 LLED Barra 24V 150 CW653 ECO DL Frost 1235 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.54 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 630 mA Power 15.1 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 147 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1594 F:1610 G:1579 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11157532151 LLED Barra 24V 160 WW303 HE ECO DL Clear 1679 111 3045 ± 84 Warm 80 Clear 11157524151 LLED Barra 24V 160 NW403 ECO DL Clear 1630 108 3986 ± 144 Neutral 80 Clear 11157534151 LLED Barra 24V 160 NW403 HE ECO DL Clear 1756 116 3986 ± 144 Neutral 80 Clear 11157525151 LLED Barra 24V 160 CW503 ECO DL Clear 1630 108 5029 ± 186 Cool 80 Clear 11157536151 LLED Barra 24V 160 CW573 HE ECO DL Clear 1756 116 5668 ± 207 Cool 80 Clear 11157527151 LLED Barra 24V 160 CW653 ECO DL Clear 1630 108 6536 ± 279 Cool 80 Clear 11157532152 LLED Barra 24V 160 WW303 HE ECO DL Frost 1389 92 3045 ± 84 Warm 80 Frost 11157524152 LLED Barra 24V 160 NW403 ECO DL Frost 1297 86 3986 ± 144 Neutral 80 Frost 11157534152 LLED Barra 24V 160 NW403 HE ECO DL Frost 1453 96 3986 ± 144 Neutral 80 Frost 11157525152 LLED Barra 24V 160 CW503 ECO DL Frost 1297 86 5029 ± 186 Cool 80 Frost 11157536152 LLED Barra 24V 160 CW573 HE ECO DL Frost 1453 96 5668 ± 207 Cool 80 Frost 11157527152 LLED Barra 24V 160 CW653 ECO DL Frost 1297 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.93 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 660 mA Power 15.8 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 154 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1669 F:1685 G:1654 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11165032151 LLED Barra 24V 170 WW303 HE ECO DL Clear 1759 111 3045 ± 84 Warm 80 Clear 11165024151 LLED Barra 24V 170 NW403 ECO DL Clear 1708 108 3986 ± 144 Neutral 80 Clear 11165034151 LLED Barra 24V 170 NW403 HE ECO DL Clear 1840 116 3986 ± 144 Neutral 80 Clear 11165025151 LLED Barra 24V 170 CW503 ECO DL Clear 1708 108 5029 ± 186 Cool 80 Clear 11165036151 LLED Barra 24V 170 CW573 HE ECO DL Clear 1840 116 5668 ± 207 Cool 80 Clear 11165027151 LLED Barra 24V 170 CW653 ECO DL Clear 1708 108 6536 ± 279 Cool 80 Clear 11165032152 LLED Barra 24V 170 WW303 HE ECO DL Frost 1455 92 3045 ± 84 Warm 80 Frost 11165024152 LLED Barra 24V 170 NW403 ECO DL Frost 1358 86 3986 ± 144 Neutral 80 Frost 11165034152 LLED Barra 24V 170 NW403 HE ECO DL Frost 1522 96 3986 ± 144 Neutral 80 Frost 11165025152 LLED Barra 24V 170 CW503 ECO DL Frost 1358 86 5029 ± 186 Cool 80 Frost 11165036152 LLED Barra 24V 170 CW573 HE ECO DL Frost 1522 96 5668 ± 207 Cool 80 Frost 11165027152 LLED Barra 24V 170 CW653 ECO DL Frost 1358 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 690 mA Power 16.6 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 161 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1744 F:1760 G:1729 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11172532151 LLED Barra 24V 175 WW303 HE ECO DL Clear 1839 111 3045 ± 84 Warm 80 Clear 11172524151 LLED Barra 24V 175 NW403 ECO DL Clear 1785 108 3986 ± 144 Neutral 80 Clear 11172534151 LLED Barra 24V 175 NW403 HE ECO DL Clear 1924 116 3986 ± 144 Neutral 80 Clear 11172525151 LLED Barra 24V 175 CW503 ECO DL Clear 1785 108 5029 ± 186 Cool 80 Clear 11172536151 LLED Barra 24V 175 CW573 HE ECO DL Clear 1924 116 5668 ± 207 Cool 80 Clear 11172527151 LLED Barra 24V 175 CW653 ECO DL Clear 1785 108 6536 ± 279 Cool 80 Clear 11172532152 LLED Barra 24V 175 WW303 HE ECO DL Frost 1521 92 3045 ± 84 Warm 80 Frost 11172524152 LLED Barra 24V 175 NW403 ECO DL Frost 1420 86 3986 ± 144 Neutral 80 Frost 11172534152 LLED Barra 24V 175 NW403 HE ECO DL Frost 1591 96 3986 ± 144 Neutral 80 Frost 11172525152 LLED Barra 24V 175 CW503 ECO DL Frost 1420 86 5029 ± 186 Cool 80 Frost 11172536152 LLED Barra 24V 175 CW573 HE ECO DL Frost 1591 96 5668 ± 207 Cool 80 Frost 11172527152 LLED Barra 24V 175 CW653 ECO DL Frost 1420 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 720 mA Power 17.3 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 168 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1819 F:1835 G:1804 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11180032151 LLED Barra 24V 180 WW303 HE ECO DL Clear 1919 111 3045 ± 84 Warm 80 Clear 11180024151 LLED Barra 24V 180 NW403 ECO DL Clear 1863 108 3986 ± 144 Neutral 80 Clear 11180034151 LLED Barra 24V 180 NW403 HE ECO DL Clear 2007 116 3986 ± 144 Neutral 80 Clear 11180025151 LLED Barra 24V 180 CW503 ECO DL Clear 1863 108 5029 ± 186 Cool 80 Clear 11180036151 LLED Barra 24V 180 CW573 HE ECO DL Clear 2007 116 5668 ± 207 Cool 80 Clear 11180027151 LLED Barra 24V 180 CW653 ECO DL Clear 1863 108 6536 ± 279 Cool 80 Clear 11180032152 LLED Barra 24V 180 WW303 HE ECO DL Frost 1587 92 3045 ± 84 Warm 80 Frost 11180024152 LLED Barra 24V 180 NW403 ECO DL Frost 1482 86 3986 ± 144 Neutral 80 Frost 11180034152 LLED Barra 24V 180 NW403 HE ECO DL Frost 1661 96 3986 ± 144 Neutral 80 Frost 11180025152 LLED Barra 24V 180 CW503 ECO DL Frost 1482 86 5029 ± 186 Cool 80 Frost 11180036152 LLED Barra 24V 180 CW573 HE ECO DL Frost 1661 96 5668 ± 207 Cool 80 Frost 11180027152 LLED Barra 24V 180 CW653 ECO DL Frost 1482 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 750 mA Power 18.0 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 175 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1894 F:1910 G:1879 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11187532151 LLED Barra 24V 190 WW303 HE ECO DL Clear 1999 111 3045 ± 84 Warm 80 Clear 11187524151 LLED Barra 24V 190 NW403 ECO DL Clear 1940 108 3986 ± 144 Neutral 80 Clear 11187534151 LLED Barra 24V 190 NW403 HE ECO DL Clear 2091 116 3986 ± 144 Neutral 80 Clear 11187525151 LLED Barra 24V 190 CW503 ECO DL Clear 1940 108 5029 ± 186 Cool 80 Clear 11187536151 LLED Barra 24V 190 CW573 HE ECO DL Clear 2091 116 5668 ± 207 Cool 80 Clear 11187527151 LLED Barra 24V 190 CW653 ECO DL Clear 1940 108 6536 ± 279 Cool 80 Clear 11187532152 LLED Barra 24V 190 WW303 HE ECO DL Frost 1653 92 3045 ± 84 Warm 80 Frost 11187524152 LLED Barra 24V 190 NW403 ECO DL Frost 1544 86 3986 ± 144 Neutral 80 Frost 11187534152 LLED Barra 24V 190 NW403 HE ECO DL Frost 1730 96 3986 ± 144 Neutral 80 Frost 11187525152 LLED Barra 24V 190 CW503 ECO DL Frost 1544 86 5029 ± 186 Cool 80 Frost 11187536152 LLED Barra 24V 190 CW573 HE ECO DL Frost 1730 96 5668 ± 207 Cool 80 Frost 11187527152 LLED Barra 24V 190 CW653 ECO DL Frost 1544 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 780 mA Power 18.7 ±1W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 182 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1969 F:1985 G:1954 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11195032151 LLED Barra 24V 195 WW303 HE ECO DL Clear 2079 111 3045 ± 84 Warm 80 Clear 11195024151 LLED Barra 24V 195 NW403 ECO DL Clear 2018 108 3986 ± 144 Neutral 80 Clear 11195034151 LLED Barra 24V 195 NW403 HE ECO DL Clear 2175 116 3986 ± 144 Neutral 80 Clear 11195025151 LLED Barra 24V 195 CW503 ECO DL Clear 2018 108 5029 ± 186 Cool 80 Clear 11195036151 LLED Barra 24V 195 CW573 HE ECO DL Clear 2175 116 5668 ± 207 Cool 80 Clear 11195027151 LLED Barra 24V 195 CW653 ECO DL Clear 2018 108 6536 ± 279 Cool 80 Clear 11195032152 LLED Barra 24V 195 WW303 HE ECO DL Frost 1720 92 3045 ± 84 Warm 80 Frost 11195024152 LLED Barra 24V 195 NW403 ECO DL Frost 1605 86 3986 ± 144 Neutral 80 Frost 11195034152 LLED Barra 24V 195 NW403 HE ECO DL Frost 1799 96 3986 ± 144 Neutral 80 Frost 11195025152 LLED Barra 24V 195 CW503 ECO DL Frost 1605 86 5029 ± 186 Cool 80 Frost 11195036152 LLED Barra 24V 195 CW573 HE ECO DL Frost 1799 96 5668 ± 207 Cool 80 Frost 11195027152 LLED Barra 24V 195 CW653 ECO DL Frost 1605 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 810 mA Power 19.4 ±1W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 189 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2044 F:2060 G:2029 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11202532151 LLED Barra 24V 200 WW303 HE ECO DL Clear 2159 111 3045 ± 84 Warm 80 Clear 11202524151 LLED Barra 24V 200 NW403 ECO DL Clear 2096 108 3986 ± 144 Neutral 80 Clear 11202534151 LLED Barra 24V 200 NW403 HE ECO DL Clear 2258 116 3986 ± 144 Neutral 80 Clear 11202525151 LLED Barra 24V 200 CW503 ECO DL Clear 2096 108 5029 ± 186 Cool 80 Clear 11202536151 LLED Barra 24V 200 CW573 HE ECO DL Clear 2258 116 5668 ± 207 Cool 80 Clear 11202527151 LLED Barra 24V 200 CW653 ECO DL Clear 2096 108 6536 ± 279 Cool 80 Clear 11202532152 LLED Barra 24V 200 WW303 HE ECO DL Frost 1786 92 3045 ± 84 Warm 80 Frost 11202524152 LLED Barra 24V 200 NW403 ECO DL Frost 1667 86 3986 ± 144 Neutral 80 Frost 11202534152 LLED Barra 24V 200 NW403 HE ECO DL Frost 1868 96 3986 ± 144 Neutral 80 Frost 11202525152 LLED Barra 24V 200 CW503 ECO DL Frost 1667 86 5029 ± 186 Cool 80 Frost 11202536152 LLED Barra 24V 200 CW573 HE ECO DL Frost 1868 96 5668 ± 207 Cool 80 Frost 11202527152 LLED Barra 24V 200 CW653 ECO DL Frost 1667 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 840 mA Power 20.2 ±1W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 196 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2119 F:2135 G:2104 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11210032151 LLED Barra 24V 210 WW303 HE ECO DL Clear 2239 111 3045 ± 84 Warm 80 Clear 11210024151 LLED Barra 24V 210 NW403 ECO DL Clear 2173 108 3986 ± 144 Neutral 80 Clear 11210034151 LLED Barra 24V 210 NW403 HE ECO DL Clear 2342 116 3986 ± 144 Neutral 80 Clear 11210025151 LLED Barra 24V 210 CW503 ECO DL Clear 2173 108 5029 ± 186 Cool 80 Clear 11210036151 LLED Barra 24V 210 CW573 HE ECO DL Clear 2342 116 5668 ± 207 Cool 80 Clear 11210027151 LLED Barra 24V 210 CW653 ECO DL Clear 2173 108 6536 ± 279 Cool 80 Clear 11210032152 LLED Barra 24V 210 WW303 HE ECO DL Frost 1852 92 3045 ± 84 Warm 80 Frost 11210024152 LLED Barra 24V 210 NW403 ECO DL Frost 1729 86 3986 ± 144 Neutral 80 Frost 11210034152 LLED Barra 24V 210 NW403 HE ECO DL Frost 1937 96 3986 ± 144 Neutral 80 Frost 11210025152 LLED Barra 24V 210 CW503 ECO DL Frost 1729 86 5029 ± 186 Cool 80 Frost 11210036152 LLED Barra 24V 210 CW573 HE ECO DL Frost 1937 96 5668 ± 207 Cool 80 Frost 11210027152 LLED Barra 24V 210 CW653 ECO DL Frost 1729 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 870 mA Power 20.9 ±1W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 203 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2194 F:2210 G:2179 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11217532151 LLED Barra 24V 220 WW303 HE ECO DL Clear 2319 111 3045 ± 84 Warm 80 Clear 11217524151 LLED Barra 24V 220 NW403 ECO DL Clear 2251 108 3986 ± 144 Neutral 80 Clear 11217534151 LLED Barra 24V 220 NW403 HE ECO DL Clear 2426 116 3986 ± 144 Neutral 80 Clear 11217525151 LLED Barra 24V 220 CW503 ECO DL Clear 2251 108 5029 ± 186 Cool 80 Clear 11217536151 LLED Barra 24V 220 CW573 HE ECO DL Clear 2426 116 5668 ± 207 Cool 80 Clear 11217527151 LLED Barra 24V 220 CW653 ECO DL Clear 2251 108 6536 ± 279 Cool 80 Clear 11217532152 LLED Barra 24V 220 WW303 HE ECO DL Frost 1918 92 3045 ± 84 Warm 80 Frost 11217524152 LLED Barra 24V 220 NW403 ECO DL Frost 1790 86 3986 ± 144 Neutral 80 Frost 11217534152 LLED Barra 24V 220 NW403 HE ECO DL Frost 2007 96 3986 ± 144 Neutral 80 Frost 11217525152 LLED Barra 24V 220 CW503 ECO DL Frost 1790 86 5029 ± 186 Cool 80 Frost 11217536152 LLED Barra 24V 220 CW573 HE ECO DL Frost 2007 96 5668 ± 207 Cool 80 Frost 11217527152 LLED Barra 24V 220 CW653 ECO DL Frost 1790 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.55 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 900 mA Power 21.6 ±1W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 210 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2269 F:2285 G:2254 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11225032151 LLED Barra 24V 225 WW303 HE ECO DL HE Clear 2399 111 3045 ± 84 Warm 80 Clear 11225024151 LLED Barra 24V 225 NW403 ECO DL HE Clear 2328 108 3986 ± 144 Neutral 80 Clear 11225034151 LLED Barra 24V 225 NW403 HE ECO DL HE Clear 2509 116 3986 ± 144 Neutral 80 Clear 11225025151 LLED Barra 24V 225 CW503 ECO DL Clear 2328 108 5029 ± 186 Cool 80 Clear 11225036151 LLED Barra 24V 225 CW573 HE ECO DL HE Clear 2509 116 5668 ± 207 Cool 80 Clear 11225027151 LLED Barra 24V 225 CW653 ECO DL Clear 2328 108 6536 ± 279 Cool 80 Clear 11225032152 LLED Barra 24V 225 WW303 HE ECO DL HE Frost 1984 92 3045 ± 84 Warm 80 Frost 11225024152 LLED Barra 24V 225 NW403 ECO DL HE Frost 1852 86 3986 ± 144 Neutral 80 Frost 11225034152 LLED Barra 24V 225 NW403 HE ECO DL HE Frost 2076 96 3986 ± 144 Neutral 80 Frost 11225025152 LLED Barra 24V 225 CW503 ECO DL Frost 1852 86 5029 ± 186 Cool 80 Frost 11225036152 LLED Barra 24V 225 CW573 HE ECO DL HE Frost 2076 96 5668 ± 207 Cool 80 Frost 11225027152 LLED Barra 24V 225 CW653 ECO DL Frost 1852 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.50 Specifications subject to change without notice.
× REFERENCES CODE: XXYYZZ - The last six digits are additional options. XX - Bar body finishing.  Natural AluminumXX=01  White AluminumXX=02  Brown AluminumXX=03  PolycarbonateXX=81 YY - Bar connection.  Top Input cableYY=01  Male connector input - 1C2PYY=04  Male connector input female connector output - 2C2PYY=06  Top Input cable ouput connector - 1C2P+STopoYY=08 ZZ - Cable type.  Without connectorZZ=00  ASQC2 ConnectorZZ=27  DCJ ConnectorZZ=41  DC24 ConnectorZZ=46
|
|
       | |
Natural Aluminum
White Aluminum
Brown Aluminum
Polycarbonate
Clear
Frost
Top Input cable
Male connector input - 1C2P
Male connector input female connector output - 2C2P
Top Input cable ouput connector - 1C2P+STopo
- ×
Unit of measurement: mm
180º Clip w/ 45º base Cod: 8400035115180º Clip w/ 45º base
×
Unit of measurement: mm
180 º Fix clip Cod: 8400035111180 º Fix clip
×
Unit of measurement: mm
45 º Fix clip Cod: 840003511245 º Fix clip
×
Unit of measurement: mm

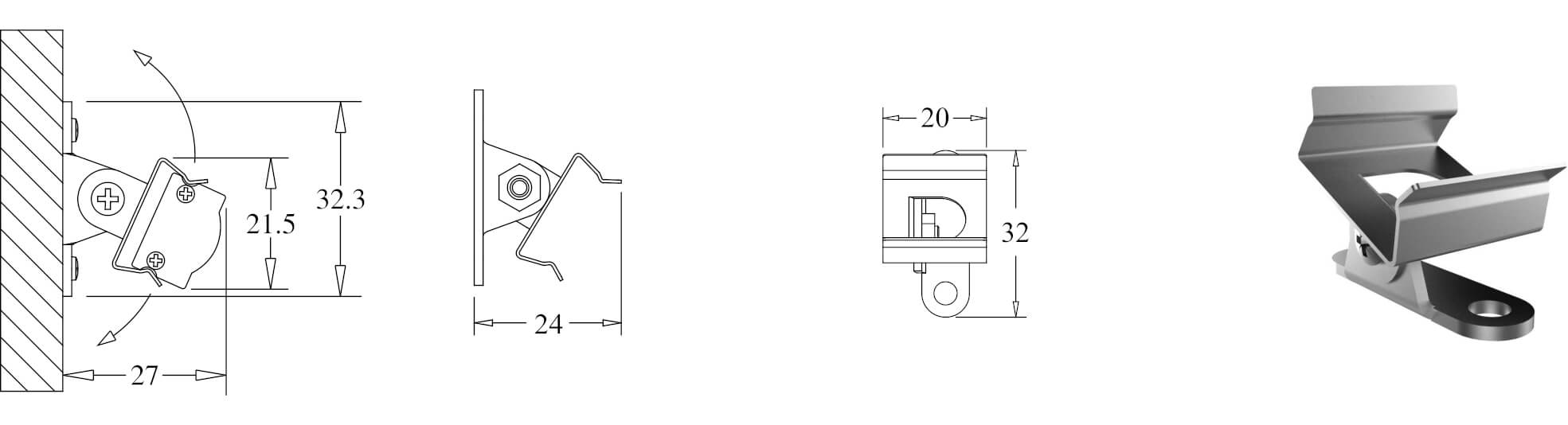

Rotating clip Cod: 8400035114Rotating clip
×
Unit of measurement: mm
180 º PVC support Type: 180º
Silicone cap without hole BR:8400033071 CZ:8400033081
Silicone cap with hole BR:8400033072 CZ:8400033082180 º PVC clip
×
Unit of measurement: mm
45 º PVC support Type: 45º
Silicone cap without hole BR Right:8400033076 CZ:8400033086
Silicone cap with hole BR Left:8400033075 CZ:840003308545 º PVC clip
×
Unit of measurement: mm
Corner PVC support Type: Corner
Silicone cap without hole BR:8400033073 CZ:8400033083
Silicone cap with hole BR:8400033074 CZ:8400033084Corner PVC clip
×
Unit of measurement: mm
180º Fixation clip - Polycarbonate Cod: 8400035117180º Fixing clip - Polycarbonate
×
Unit of measurement: mm
Fixation support - Polycarbonate Cod: 8400035119Fixing support - Policarbonate
Cool white 6500K 3SDCM
