The Eco² LED Bars, just like our 3s Led Bars or ECO, aims to create a new lighting concept and considerably reduce even more energy consumptions than previous versions.
Color temperature tolerance of 3 SDCM MacAdam ellipses, defined by ANSI C78.377:2011 LEDs are classified as Risk Group 1 according standard EN62471.
Photobiological Safety of Lamps and Lamp Systems.
Our polycarbonate lent Trirex 3030IR, meets the standard for Food contact FDA 21CFR 177.1580 and (EU) No. 10/2011 for European Union.
Huge flexibility size(90-2250mm) allows size and lighting composition for each project.
Easy to install, allows the use of single bars for each sizes, or join several continuous bars so that the lighting space is suitable.
- 10cm
- 17cm
- 25cm
- 30cm
- 40cm
- 47cm
- 55cm
- 60cm
- 70cm
- 80cm
- 85cm
- 90cm
- 100cm
- 105cm
- 115cm
- 120cm
- 130cm
- 140cm
- 145cm
- 150cm
- 160cm
- 170cm
- 175cm
- 180cm
- 190cm
- 195cm
- 200cm
- 210cm
- 220cm
- 225cm
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 24 mA Power 0.6 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 6 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:94 F:110 G:79 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.
LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11007532161 LLED Barra 24V 10 WW303 HE ECO² DL Clear 58 96 3045 ± 84 Warm 80 Clear 11007542161 LLED Barra 24V 10 WW303 E1 ECO² DL Clear 60 100 3045 ± 84 Warm 80 Clear 11007534161 LLED Barra 24V 10 NW403 HE ECO² DL Clear 60 101 3986 ± 144 Neutral 80 Clear 11007544161 LLED Barra 24V 10 NW403 E1 ECO² DL Clear 63 106 3986 ± 144 Neutral 80 Clear 11007525161 LLED Barra 24V 10 CW503 ECO² DL Clear 53 89 5029 ± 186 Cool 80 Clear 11007536161 LLED Barra 24V 10 CW573 HE ECO² DL Clear 60 101 5668 ± 207 Cool 80 Clear 11007527161 LLED Barra 24V 10 CW653 ECO² DL Clear 53 89 6536 ± 279 Cool 80 Clear 11007532162 LLED Barra 24V 10 WW303 HE ECO² DL Frost 45 76 3045 ± 84 Warm 80 Frost 11007542162 LLED Barra 24V 10 WW303 E1 ECO² DL Frost 46 76 3045 ± 84 Warm 80 Frost 11007534162 LLED Barra 24V 10 NW403 HE ECO² DL Frost 47 79 3986 ± 144 Neutral 80 Frost 11007544162 LLED Barra 24V 10 NW403 E1 ECO² DL Frost 48 80 3986 ± 144 Neutral 80 Frost 11007525162 LLED Barra 24V 10 CW503 ECO² DL Frost 42 71 5029 ± 186 Cool 80 Frost 11007536162 LLED Barra 24V 10 CW573 HE ECO² DL Frost 47 79 5668 ± 207 Cool 80 Frost 11007527162 LLED Barra 24V 10 CW653 ECO² DL Frost 42 71 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet
EEI Label Update 2019-11-11 Datasheet v1.77 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 48 mA Power 1.2 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 12 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:169 F:185 G:154 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11015032161 LLED Barra 24V 17 WW303 HE ECO² DL Clear 116 96 3045 ± 84 Warm 80 Clear 11015042161 LLED Barra 24V 17 WW303 E1 ECO² DL Clear 120 100 3045 ± 84 Warm 80 Clear 11015034161 LLED Barra 24V 17 NW403 HE ECO² DL Clear 121 101 3986 ± 144 Neutral 80 Clear 11015044161 LLED Barra 24V 17 NW403 E1 ECO² DL Clear 127 106 3986 ± 144 Neutral 80 Clear 11015025161 LLED Barra 24V 17 CW503 ECO² DL Clear 106 89 5029 ± 186 Cool 80 Clear 11015036161 LLED Barra 24V 17 CW573 HE ECO² DL Clear 121 101 5668 ± 207 Cool 80 Clear 11015027161 LLED Barra 24V 17 CW653 ECO² DL Clear 106 89 6536 ± 279 Cool 80 Clear 11015032162 LLED Barra 24V 17 WW303 HE ECO² DL Frost 91 76 3045 ± 84 Warm 80 Frost 11015042162 LLED Barra 24V 17 WW303 E1 ECO² DL Frost 91 76 3045 ± 84 Warm 80 Frost 11015034162 LLED Barra 24V 17 NW403 HE ECO² DL Frost 95 79 3986 ± 144 Neutral 80 Frost 11015044162 LLED Barra 24V 17 NW403 E1 ECO² DL Frost 96 80 3986 ± 144 Neutral 80 Frost 11015025162 LLED Barra 24V 17 CW503 ECO² DL Frost 85 71 5029 ± 186 Cool 80 Frost 11015036162 LLED Barra 24V 17 CW573 HE ECO² DL Frost 95 79 5668 ± 207 Cool 80 Frost 11015027162 LLED Barra 24V 17 CW653 ECO² DL Frost 85 71 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.72 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 72 mA Power 1.7 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 18 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:244 F:260 G:229 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11022532161 LLED Barra 24V 25 WW303 HE ECO² DL Clear 173 102 3045 ± 84 Warm 80 Clear 11022542161 LLED Barra 24V 25 WW303 E1 ECO² DL Clear 180 106 3045 ± 84 Warm 80 Clear 11022534161 LLED Barra 24V 25 NW403 HE ECO² DL Clear 181 107 3986 ± 144 Neutral 80 Clear 11022544161 LLED Barra 24V 25 NW403 E1 ECO² DL Clear 190 112 3986 ± 144 Neutral 80 Clear 11022525161 LLED Barra 24V 25 CW503 ECO² DL Clear 160 94 5029 ± 186 Cool 80 Clear 11022536161 LLED Barra 24V 25 CW573 HE ECO² DL Clear 181 107 5668 ± 207 Cool 80 Clear 11022527161 LLED Barra 24V 25 CW653 ECO² DL Clear 160 94 6536 ± 279 Cool 80 Clear 11022532162 LLED Barra 24V 25 WW303 HE ECO² DL Frost 136 80 3045 ± 84 Warm 80 Frost 11022542162 LLED Barra 24V 25 WW303 E1 ECO² DL Frost 137 81 3045 ± 84 Warm 80 Frost 11022534162 LLED Barra 24V 25 NW403 HE ECO² DL Frost 142 84 3986 ± 144 Neutral 80 Frost 11022544162 LLED Barra 24V 25 NW403 E1 ECO² DL Frost 145 85 3986 ± 144 Neutral 80 Frost 11022525162 LLED Barra 24V 25 CW503 ECO² DL Frost 127 75 5029 ± 186 Cool 80 Frost 11022536162 LLED Barra 24V 25 CW573 HE ECO² DL Frost 142 84 5668 ± 207 Cool 80 Frost 11022527162 LLED Barra 24V 25 CW653 ECO² DL Frost 127 75 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.72 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 96 mA Power 2.3 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 24 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:319 F:335 G:304 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11030032161 LLED Barra 24V 30 WW303 HE ECO² DL Clear 231 101 3045 ± 84 Warm 80 Clear 11030042161 LLED Barra 24V 30 WW303 E1 ECO² DL Clear 240 104 3045 ± 84 Warm 80 Clear 11030034161 LLED Barra 24V 30 NW403 HE ECO² DL Clear 242 105 3986 ± 144 Neutral 80 Clear 11030044161 LLED Barra 24V 30 NW403 E1 ECO² DL Clear 254 110 3986 ± 144 Neutral 80 Clear 11030025161 LLED Barra 24V 30 CW503 ECO² DL Clear 213 93 5029 ± 186 Cool 80 Clear 11030036161 LLED Barra 24V 30 CW573 HE ECO² DL Clear 242 105 5668 ± 207 Cool 80 Clear 11030027161 LLED Barra 24V 30 CW653 ECO² DL Clear 213 93 6536 ± 279 Cool 80 Clear 11030032162 LLED Barra 24V 30 WW303 HE ECO² DL Frost 182 79 3045 ± 84 Warm 80 Frost 11030042162 LLED Barra 24V 30 WW303 E1 ECO² DL Frost 183 79 3045 ± 84 Warm 80 Frost 11030034162 LLED Barra 24V 30 NW403 HE ECO² DL Frost 190 83 3986 ± 144 Neutral 80 Frost 11030044162 LLED Barra 24V 30 NW403 E1 ECO² DL Frost 193 84 3986 ± 144 Neutral 80 Frost 11030025162 LLED Barra 24V 30 CW503 ECO² DL Frost 169 74 5029 ± 186 Cool 80 Frost 11030036162 LLED Barra 24V 30 CW573 HE ECO² DL Frost 190 83 5668 ± 207 Cool 80 Frost 11030027162 LLED Barra 24V 30 CW653 ECO² DL Frost 169 74 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 95 mA Power 2.3 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 28 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:394 F:410 G:379 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11037532161 LLED Barra 24V 40 WW303 HE ECO² DL Clear 267 116 3045 ± 84 Warm 80 Clear 11037542161 LLED Barra 24V 40 WW303 E1 ECO² DL Clear 277 120 3045 ± 84 Warm 80 Clear 11037534161 LLED Barra 24V 40 NW403 HE ECO² DL Clear 279 121 3986 ± 144 Neutral 80 Clear 11037544161 LLED Barra 24V 40 NW403 E1 ECO² DL Clear 293 127 3986 ± 144 Neutral 80 Clear 11037525161 LLED Barra 24V 40 CW503 ECO² DL Clear 246 107 5029 ± 186 Cool 80 Clear 11037536161 LLED Barra 24V 40 CW573 HE ECO² DL Clear 279 121 5668 ± 207 Cool 80 Clear 11037527161 LLED Barra 24V 40 CW653 ECO² DL Clear 246 107 6536 ± 279 Cool 80 Clear 11037532162 LLED Barra 24V 40 WW303 HE ECO² DL Frost 210 91 3045 ± 84 Warm 80 Frost 11037542162 LLED Barra 24V 40 WW303 E1 ECO² DL Frost 211 92 3045 ± 84 Warm 80 Frost 11037534162 LLED Barra 24V 40 NW403 HE ECO² DL Frost 219 95 3986 ± 144 Neutral 80 Frost 11037544162 LLED Barra 24V 40 NW403 E1 ECO² DL Frost 223 97 3986 ± 144 Neutral 80 Frost 11037525162 LLED Barra 24V 40 CW503 ECO² DL Frost 196 85 5029 ± 186 Cool 80 Frost 11037536162 LLED Barra 24V 40 CW573 HE ECO² DL Frost 219 95 5668 ± 207 Cool 80 Frost 11037527162 LLED Barra 24V 40 CW653 ECO² DL Frost 196 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 119 mA Power 2.9 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 34 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:469 F:485 G:454 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11045032161 LLED Barra 24V 47 WW303 HE ECO² DL Clear 325 112 3045 ± 84 Warm 80 Clear 11045042161 LLED Barra 24V 47 WW303 E1 ECO² DL Clear 337 116 3045 ± 84 Warm 80 Clear 11045034161 LLED Barra 24V 47 NW403 HE ECO² DL Clear 340 117 3986 ± 144 Neutral 80 Clear 11045044161 LLED Barra 24V 47 NW403 E1 ECO² DL Clear 356 123 3986 ± 144 Neutral 80 Clear 11045025161 LLED Barra 24V 47 CW503 ECO² DL Clear 299 103 5029 ± 186 Cool 80 Clear 11045036161 LLED Barra 24V 47 CW573 HE ECO² DL Clear 340 117 5668 ± 207 Cool 80 Clear 11045027161 LLED Barra 24V 47 CW653 ECO² DL Clear 299 103 6536 ± 279 Cool 80 Clear 11045032162 LLED Barra 24V 47 WW303 HE ECO² DL Frost 255 88 3045 ± 84 Warm 80 Frost 11045042162 LLED Barra 24V 47 WW303 E1 ECO² DL Frost 256 88 3045 ± 84 Warm 80 Frost 11045034162 LLED Barra 24V 47 NW403 HE ECO² DL Frost 267 92 3986 ± 144 Neutral 80 Frost 11045044162 LLED Barra 24V 47 NW403 E1 ECO² DL Frost 271 93 3986 ± 144 Neutral 80 Frost 11045025162 LLED Barra 24V 47 CW503 ECO² DL Frost 238 82 5029 ± 186 Cool 80 Frost 11045036162 LLED Barra 24V 47 CW573 HE ECO² DL Frost 267 92 5668 ± 207 Cool 80 Frost 11045027162 LLED Barra 24V 47 CW653 ECO² DL Frost 238 82 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 143 mA Power 3.4 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 40 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:544 F:560 G:529 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11052532161 LLED Barra 24V 55 WW303 HE ECO² DL Clear 383 113 3045 ± 84 Warm 80 Clear 11052542161 LLED Barra 24V 55 WW303 E1 ECO² DL Clear 397 117 3045 ± 84 Warm 80 Clear 11052534161 LLED Barra 24V 55 NW403 HE ECO² DL Clear 400 118 3986 ± 144 Neutral 80 Clear 11052544161 LLED Barra 24V 55 NW403 E1 ECO² DL Clear 420 123 3986 ± 144 Neutral 80 Clear 11052525161 LLED Barra 24V 55 CW503 ECO² DL Clear 352 104 5029 ± 186 Cool 80 Clear 11052536161 LLED Barra 24V 55 CW573 HE ECO² DL Clear 400 118 5668 ± 207 Cool 80 Clear 11052527161 LLED Barra 24V 55 CW653 ECO² DL Clear 352 104 6536 ± 279 Cool 80 Clear 11052532162 LLED Barra 24V 55 WW303 HE ECO² DL Frost 301 88 3045 ± 84 Warm 80 Frost 11052542162 LLED Barra 24V 55 WW303 E1 ECO² DL Frost 302 89 3045 ± 84 Warm 80 Frost 11052534162 LLED Barra 24V 55 NW403 HE ECO² DL Frost 314 92 3986 ± 144 Neutral 80 Frost 11052544162 LLED Barra 24V 55 NW403 E1 ECO² DL Frost 319 94 3986 ± 144 Neutral 80 Frost 11052525162 LLED Barra 24V 55 CW503 ECO² DL Frost 280 82 5029 ± 186 Cool 80 Frost 11052536162 LLED Barra 24V 55 CW573 HE ECO² DL Frost 314 92 5668 ± 207 Cool 80 Frost 11052527162 LLED Barra 24V 55 CW653 ECO² DL Frost 280 82 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.72 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 167 mA Power 4.0 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 46 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:619 F:635 G:604 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11060032161 LLED Barra 24V 60 WW303 HE ECO² DL Clear 441 110 3045 ± 84 Warm 80 Clear 11060042161 LLED Barra 24V 60 WW303 E1 ECO² DL Clear 457 114 3045 ± 84 Warm 80 Clear 11060034161 LLED Barra 24V 60 NW403 HE ECO² DL Clear 461 115 3986 ± 144 Neutral 80 Clear 11060044161 LLED Barra 24V 60 NW403 E1 ECO² DL Clear 483 121 3986 ± 144 Neutral 80 Clear 11060025161 LLED Barra 24V 60 CW503 ECO² DL Clear 406 101 5029 ± 186 Cool 80 Clear 11060036161 LLED Barra 24V 60 CW573 HE ECO² DL Clear 461 115 5668 ± 207 Cool 80 Clear 11060027161 LLED Barra 24V 60 CW653 ECO² DL Clear 406 101 6536 ± 279 Cool 80 Clear 11060032162 LLED Barra 24V 60 WW303 HE ECO² DL Frost 346 86 3045 ± 84 Warm 80 Frost 11060042162 LLED Barra 24V 60 WW303 E1 ECO² DL Frost 348 87 3045 ± 84 Warm 80 Frost 11060034162 LLED Barra 24V 60 NW403 HE ECO² DL Frost 362 90 3986 ± 144 Neutral 80 Frost 11060044162 LLED Barra 24V 60 NW403 E1 ECO² DL Frost 368 92 3986 ± 144 Neutral 80 Frost 11060025162 LLED Barra 24V 60 CW503 ECO² DL Frost 323 81 5029 ± 186 Cool 80 Frost 11060036162 LLED Barra 24V 60 CW573 HE ECO² DL Frost 362 90 5668 ± 207 Cool 80 Frost 11060027162 LLED Barra 24V 60 CW653 ECO² DL Frost 323 81 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.72 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 191 mA Power 4.6 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 52 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:694 F:710 G:679 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11067532161 LLED Barra 24V 70 WW303 HE ECO² DL Clear 498 108 3045 ± 84 Warm 80 Clear 11067542161 LLED Barra 24V 70 WW303 E1 ECO² DL Clear 517 112 3045 ± 84 Warm 80 Clear 11067534161 LLED Barra 24V 70 NW403 HE ECO² DL Clear 521 113 3986 ± 144 Neutral 80 Clear 11067544161 LLED Barra 24V 70 NW403 E1 ECO² DL Clear 547 119 3986 ± 144 Neutral 80 Clear 11067525161 LLED Barra 24V 70 CW503 ECO² DL Clear 459 100 5029 ± 186 Cool 80 Clear 11067536161 LLED Barra 24V 70 CW573 HE ECO² DL Clear 521 113 5668 ± 207 Cool 80 Clear 11067527161 LLED Barra 24V 70 CW653 ECO² DL Clear 459 100 6536 ± 279 Cool 80 Clear 11067532162 LLED Barra 24V 70 WW303 HE ECO² DL Frost 391 85 3045 ± 84 Warm 80 Frost 11067542162 LLED Barra 24V 70 WW303 E1 ECO² DL Frost 393 86 3045 ± 84 Warm 80 Frost 11067534162 LLED Barra 24V 70 NW403 HE ECO² DL Frost 409 89 3986 ± 144 Neutral 80 Frost 11067544162 LLED Barra 24V 70 NW403 E1 ECO² DL Frost 416 90 3986 ± 144 Neutral 80 Frost 11067525162 LLED Barra 24V 70 CW503 ECO² DL Frost 365 79 5029 ± 186 Cool 80 Frost 11067536162 LLED Barra 24V 70 CW573 HE ECO² DL Frost 409 89 5668 ± 207 Cool 80 Frost 11067527162 LLED Barra 24V 70 CW653 ECO² DL Frost 365 79 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 190 mA Power 4.6 ±0.2W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 56 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:769 F:785 G:754 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11075032161 LLED Barra 24V 80 WW303 HE ECO² DL Clear 534 116 3045 ± 84 Warm 80 Clear 11075042161 LLED Barra 24V 80 WW303 E1 ECO² DL Clear 554 120 3045 ± 84 Warm 80 Clear 11075034161 LLED Barra 24V 80 NW403 HE ECO² DL Clear 559 121 3986 ± 144 Neutral 80 Clear 11075044161 LLED Barra 24V 80 NW403 E1 ECO² DL Clear 586 127 3986 ± 144 Neutral 80 Clear 11075025161 LLED Barra 24V 80 CW503 ECO² DL Clear 492 107 5029 ± 186 Cool 80 Clear 11075036161 LLED Barra 24V 80 CW573 HE ECO² DL Clear 559 121 5668 ± 207 Cool 80 Clear 11075027161 LLED Barra 24V 80 CW653 ECO² DL Clear 492 107 6536 ± 279 Cool 80 Clear 11075032162 LLED Barra 24V 80 WW303 HE ECO² DL Frost 419 91 3045 ± 84 Warm 80 Frost 11075042162 LLED Barra 24V 80 WW303 E1 ECO² DL Frost 421 92 3045 ± 84 Warm 80 Frost 11075034162 LLED Barra 24V 80 NW403 HE ECO² DL Frost 439 95 3986 ± 144 Neutral 80 Frost 11075044162 LLED Barra 24V 80 NW403 E1 ECO² DL Frost 446 97 3986 ± 144 Neutral 80 Frost 11075025162 LLED Barra 24V 80 CW503 ECO² DL Frost 391 85 5029 ± 186 Cool 80 Frost 11075036162 LLED Barra 24V 80 CW573 HE ECO² DL Frost 439 95 5668 ± 207 Cool 80 Frost 11075027162 LLED Barra 24V 80 CW653 ECO² DL Frost 391 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 214 mA Power 5.1 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 62 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:844 F:860 G:829 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11082532161 LLED Barra 24V 85 WW303 HE ECO² DL Clear 592 116 3045 ± 84 Warm 80 Clear 11082542161 LLED Barra 24V 85 WW303 E1 ECO² DL Clear 614 120 3045 ± 84 Warm 80 Clear 11082534161 LLED Barra 24V 85 NW403 HE ECO² DL Clear 619 121 3986 ± 144 Neutral 80 Clear 11082544161 LLED Barra 24V 85 NW403 E1 ECO² DL Clear 649 127 3986 ± 144 Neutral 80 Clear 11082525161 LLED Barra 24V 85 CW503 ECO² DL Clear 545 107 5029 ± 186 Cool 80 Clear 11082536161 LLED Barra 24V 85 CW573 HE ECO² DL Clear 619 121 5668 ± 207 Cool 80 Clear 11082527161 LLED Barra 24V 85 CW653 ECO² DL Clear 545 107 6536 ± 279 Cool 80 Clear 11082532162 LLED Barra 24V 85 WW303 HE ECO² DL Frost 465 91 3045 ± 84 Warm 80 Frost 11082542162 LLED Barra 24V 85 WW303 E1 ECO² DL Frost 467 92 3045 ± 84 Warm 80 Frost 11082534162 LLED Barra 24V 85 NW403 HE ECO² DL Frost 486 95 3986 ± 144 Neutral 80 Frost 11082544162 LLED Barra 24V 85 NW403 E1 ECO² DL Frost 494 97 3986 ± 144 Neutral 80 Frost 11082525162 LLED Barra 24V 85 CW503 ECO² DL Frost 433 85 5029 ± 186 Cool 80 Frost 11082536162 LLED Barra 24V 85 CW573 HE ECO² DL Frost 486 95 5668 ± 207 Cool 80 Frost 11082527162 LLED Barra 24V 85 CW653 ECO² DL Frost 433 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 238 mA Power 5.7 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 68 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:919 F:935 G:904 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11090032161 LLED Barra 24V 90 WW303 HE ECO² DL Clear 650 114 3045 ± 84 Warm 80 Clear 11090042161 LLED Barra 24V 90 WW303 E1 ECO² DL Clear 674 118 3045 ± 84 Warm 80 Clear 11090034161 LLED Barra 24V 90 NW403 HE ECO² DL Clear 680 119 3986 ± 144 Neutral 80 Clear 11090044161 LLED Barra 24V 90 NW403 E1 ECO² DL Clear 713 125 3986 ± 144 Neutral 80 Clear 11090025161 LLED Barra 24V 90 CW503 ECO² DL Clear 598 105 5029 ± 186 Cool 80 Clear 11090036161 LLED Barra 24V 90 CW573 HE ECO² DL Clear 680 119 5668 ± 207 Cool 80 Clear 11090027161 LLED Barra 24V 90 CW653 ECO² DL Clear 598 105 6536 ± 279 Cool 80 Clear 11090032162 LLED Barra 24V 90 WW303 HE ECO² DL Frost 510 90 3045 ± 84 Warm 80 Frost 11090042162 LLED Barra 24V 90 WW303 E1 ECO² DL Frost 513 90 3045 ± 84 Warm 80 Frost 11090034162 LLED Barra 24V 90 NW403 HE ECO² DL Frost 534 94 3986 ± 144 Neutral 80 Frost 11090044162 LLED Barra 24V 90 NW403 E1 ECO² DL Frost 542 95 3986 ± 144 Neutral 80 Frost 11090025162 LLED Barra 24V 90 CW503 ECO² DL Frost 476 83 5029 ± 186 Cool 80 Frost 11090036162 LLED Barra 24V 90 CW573 HE ECO² DL Frost 534 94 5668 ± 207 Cool 80 Frost 11090027162 LLED Barra 24V 90 CW653 ECO² DL Frost 476 83 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 262 mA Power 6.3 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 74 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:994 F:1010 G:979 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11097532161 LLED Barra 24V 100 WW303 HE ECO² DL Clear 708 112 3045 ± 84 Warm 80 Clear 11097542161 LLED Barra 24V 100 WW303 E1 ECO² DL Clear 734 117 3045 ± 84 Warm 80 Clear 11097534161 LLED Barra 24V 100 NW403 HE ECO² DL Clear 740 117 3986 ± 144 Neutral 80 Clear 11097544161 LLED Barra 24V 100 NW403 E1 ECO² DL Clear 776 123 3986 ± 144 Neutral 80 Clear 11097525161 LLED Barra 24V 100 CW503 ECO² DL Clear 651 103 5029 ± 186 Cool 80 Clear 11097536161 LLED Barra 24V 100 CW573 HE ECO² DL Clear 740 117 5668 ± 207 Cool 80 Clear 11097527161 LLED Barra 24V 100 CW653 ECO² DL Clear 651 103 6536 ± 279 Cool 80 Clear 11097532162 LLED Barra 24V 100 WW303 HE ECO² DL Frost 556 88 3045 ± 84 Warm 80 Frost 11097542162 LLED Barra 24V 100 WW303 E1 ECO² DL Frost 558 89 3045 ± 84 Warm 80 Frost 11097534162 LLED Barra 24V 100 NW403 HE ECO² DL Frost 581 92 3986 ± 144 Neutral 80 Frost 11097544162 LLED Barra 24V 100 NW403 E1 ECO² DL Frost 590 94 3986 ± 144 Neutral 80 Frost 11097525162 LLED Barra 24V 100 CW503 ECO² DL Frost 518 82 5029 ± 186 Cool 80 Frost 11097536162 LLED Barra 24V 100 CW573 HE ECO² DL Frost 581 92 5668 ± 207 Cool 80 Frost 11097527162 LLED Barra 24V 100 CW653 ECO² DL Frost 518 82 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 286 mA Power 6.9 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 80 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1069 F:1085 G:1054 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11105032161 LLED Barra 24V 105 WW303 HE ECO² DL Clear 765 111 3045 ± 84 Warm 80 Clear 11105042161 LLED Barra 24V 105 WW303 E1 ECO² DL Clear 794 115 3045 ± 84 Warm 80 Clear 11105034161 LLED Barra 24V 105 NW403 HE ECO² DL Clear 801 116 3986 ± 144 Neutral 80 Clear 11105044161 LLED Barra 24V 105 NW403 E1 ECO² DL Clear 839 122 3986 ± 144 Neutral 80 Clear 11105025161 LLED Barra 24V 105 CW503 ECO² DL Clear 705 102 5029 ± 186 Cool 80 Clear 11105036161 LLED Barra 24V 105 CW573 HE ECO² DL Clear 801 116 5668 ± 207 Cool 80 Clear 11105027161 LLED Barra 24V 105 CW653 ECO² DL Clear 705 102 6536 ± 279 Cool 80 Clear 11105032162 LLED Barra 24V 105 WW303 HE ECO² DL Frost 601 87 3045 ± 84 Warm 80 Frost 11105042162 LLED Barra 24V 105 WW303 E1 ECO² DL Frost 604 88 3045 ± 84 Warm 80 Frost 11105034162 LLED Barra 24V 105 NW403 HE ECO² DL Frost 629 91 3986 ± 144 Neutral 80 Frost 11105044162 LLED Barra 24V 105 NW403 E1 ECO² DL Frost 639 93 3986 ± 144 Neutral 80 Frost 11105025162 LLED Barra 24V 105 CW503 ECO² DL Frost 561 81 5029 ± 186 Cool 80 Frost 11105036162 LLED Barra 24V 105 CW573 HE ECO² DL Frost 629 91 5668 ± 207 Cool 80 Frost 11105027162 LLED Barra 24V 105 CW653 ECO² DL Frost 561 81 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 285 mA Power 6.8 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 84 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1144 F:1160 G:1129 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11112532161 LLED Barra 24V 115 WW303 HE ECO² DL Clear 801 118 3045 ± 84 Warm 80 Clear 11112542161 LLED Barra 24V 115 WW303 E1 ECO² DL Clear 831 122 3045 ± 84 Warm 80 Clear 11112534161 LLED Barra 24V 115 NW403 HE ECO² DL Clear 838 123 3986 ± 144 Neutral 80 Clear 11112544161 LLED Barra 24V 115 NW403 E1 ECO² DL Clear 878 129 3986 ± 144 Neutral 80 Clear 11112525161 LLED Barra 24V 115 CW503 ECO² DL Clear 737 108 5029 ± 186 Cool 80 Clear 11112536161 LLED Barra 24V 115 CW573 HE ECO² DL Clear 838 123 5668 ± 207 Cool 80 Clear 11112527161 LLED Barra 24V 115 CW653 ECO² DL Clear 737 108 6536 ± 279 Cool 80 Clear 11112532162 LLED Barra 24V 115 WW303 HE ECO² DL Frost 629 92 3045 ± 84 Warm 80 Frost 11112542162 LLED Barra 24V 115 WW303 E1 ECO² DL Frost 632 93 3045 ± 84 Warm 80 Frost 11112534162 LLED Barra 24V 115 NW403 HE ECO² DL Frost 658 97 3986 ± 144 Neutral 80 Frost 11112544162 LLED Barra 24V 115 NW403 E1 ECO² DL Frost 668 98 3986 ± 144 Neutral 80 Frost 11112525162 LLED Barra 24V 115 CW503 ECO² DL Frost 587 86 5029 ± 186 Cool 80 Frost 11112536162 LLED Barra 24V 115 CW573 HE ECO² DL Frost 658 97 5668 ± 207 Cool 80 Frost 11112527162 LLED Barra 24V 115 CW653 ECO² DL Frost 587 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 309 mA Power 7.4 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 90 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1219 F:1235 G:1204 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11120032161 LLED Barra 24V 120 WW303 HE ECO² DL Clear 859 116 3045 ± 84 Warm 80 Clear 11120042161 LLED Barra 24V 120 WW303 E1 ECO² DL Clear 891 120 3045 ± 84 Warm 80 Clear 11120034161 LLED Barra 24V 120 NW403 HE ECO² DL Clear 898 121 3986 ± 144 Neutral 80 Clear 11120044161 LLED Barra 24V 120 NW403 E1 ECO² DL Clear 942 127 3986 ± 144 Neutral 80 Clear 11120025161 LLED Barra 24V 120 CW503 ECO² DL Clear 791 107 5029 ± 186 Cool 80 Clear 11120036161 LLED Barra 24V 120 CW573 HE ECO² DL Clear 898 121 5668 ± 207 Cool 80 Clear 11120027161 LLED Barra 24V 120 CW653 ECO² DL Clear 791 107 6536 ± 279 Cool 80 Clear 11120032162 LLED Barra 24V 120 WW303 HE ECO² DL Frost 674 91 3045 ± 84 Warm 80 Frost 11120042162 LLED Barra 24V 120 WW303 E1 ECO² DL Frost 678 92 3045 ± 84 Warm 80 Frost 11120034162 LLED Barra 24V 120 NW403 HE ECO² DL Frost 706 95 3986 ± 144 Neutral 80 Frost 11120044162 LLED Barra 24V 120 NW403 E1 ECO² DL Frost 717 97 3986 ± 144 Neutral 80 Frost 11120025162 LLED Barra 24V 120 CW503 ECO² DL Frost 629 85 5029 ± 186 Cool 80 Frost 11120036162 LLED Barra 24V 120 CW573 HE ECO² DL Frost 706 95 5668 ± 207 Cool 80 Frost 11120027162 LLED Barra 24V 120 CW653 ECO² DL Frost 629 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 333 mA Power 8.0 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 96 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1294 F:1310 G:1279 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11127532161 LLED Barra 24V 130 WW303 HE ECO² DL Clear 917 115 3045 ± 84 Warm 80 Clear 11127542161 LLED Barra 24V 130 WW303 E1 ECO² DL Clear 951 119 3045 ± 84 Warm 80 Clear 11127534161 LLED Barra 24V 130 NW403 HE ECO² DL Clear 959 120 3986 ± 144 Neutral 80 Clear 11127544161 LLED Barra 24V 130 NW403 E1 ECO² DL Clear 1005 126 3986 ± 144 Neutral 80 Clear 11127525161 LLED Barra 24V 130 CW503 ECO² DL Clear 844 105 5029 ± 186 Cool 80 Clear 11127536161 LLED Barra 24V 130 CW573 HE ECO² DL Clear 959 120 5668 ± 207 Cool 80 Clear 11127527161 LLED Barra 24V 130 CW653 ECO² DL Clear 844 105 6536 ± 279 Cool 80 Clear 11127532162 LLED Barra 24V 130 WW303 HE ECO² DL Frost 720 90 3045 ± 84 Warm 80 Frost 11127542162 LLED Barra 24V 130 WW303 E1 ECO² DL Frost 724 90 3045 ± 84 Warm 80 Frost 11127534162 LLED Barra 24V 130 NW403 HE ECO² DL Frost 753 94 3986 ± 144 Neutral 80 Frost 11127544162 LLED Barra 24V 130 NW403 E1 ECO² DL Frost 765 96 3986 ± 144 Neutral 80 Frost 11127525162 LLED Barra 24V 130 CW503 ECO² DL Frost 671 84 5029 ± 186 Cool 80 Frost 11127536162 LLED Barra 24V 130 CW573 HE ECO² DL Frost 753 94 5668 ± 207 Cool 80 Frost 11127527162 LLED Barra 24V 130 CW653 ECO² DL Frost 671 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 357 mA Power 8.6 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 102 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1369 F:1385 G:1354 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11135032161 LLED Barra 24V 140 WW303 HE ECO² DL Clear 974 113 3045 ± 84 Warm 80 Clear 11135042161 LLED Barra 24V 140 WW303 E1 ECO² DL Clear 1011 118 3045 ± 84 Warm 80 Clear 11135034161 LLED Barra 24V 140 NW403 HE ECO² DL Clear 1019 119 3986 ± 144 Neutral 80 Clear 11135044161 LLED Barra 24V 140 NW403 E1 ECO² DL Clear 1069 124 3986 ± 144 Neutral 80 Clear 11135025161 LLED Barra 24V 140 CW503 ECO² DL Clear 897 104 5029 ± 186 Cool 80 Clear 11135036161 LLED Barra 24V 140 CW573 HE ECO² DL Clear 1019 119 5668 ± 207 Cool 80 Clear 11135027161 LLED Barra 24V 140 CW653 ECO² DL Clear 897 104 6536 ± 279 Cool 80 Clear 11135032162 LLED Barra 24V 140 WW303 HE ECO² DL Frost 765 89 3045 ± 84 Warm 80 Frost 11135042162 LLED Barra 24V 140 WW303 E1 ECO² DL Frost 769 89 3045 ± 84 Warm 80 Frost 11135034162 LLED Barra 24V 140 NW403 HE ECO² DL Frost 801 93 3986 ± 144 Neutral 80 Frost 11135044162 LLED Barra 24V 140 NW403 E1 ECO² DL Frost 813 95 3986 ± 144 Neutral 80 Frost 11135025162 LLED Barra 24V 140 CW503 ECO² DL Frost 714 83 5029 ± 186 Cool 80 Frost 11135036162 LLED Barra 24V 140 CW573 HE ECO² DL Frost 801 93 5668 ± 207 Cool 80 Frost 11135027162 LLED Barra 24V 140 CW653 ECO² DL Frost 714 83 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 381 mA Power 9.1 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 108 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1444 F:1460 G:1429 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11142532161 LLED Barra 24V 145 WW303 HE ECO² DL Clear 1032 113 3045 ± 84 Warm 80 Clear 11142542161 LLED Barra 24V 145 WW303 E1 ECO² DL Clear 1071 118 3045 ± 84 Warm 80 Clear 11142534161 LLED Barra 24V 145 NW403 HE ECO² DL Clear 1080 119 3986 ± 144 Neutral 80 Clear 11142544161 LLED Barra 24V 145 NW403 E1 ECO² DL Clear 1132 124 3986 ± 144 Neutral 80 Clear 11142525161 LLED Barra 24V 145 CW503 ECO² DL Clear 951 104 5029 ± 186 Cool 80 Clear 11142536161 LLED Barra 24V 145 CW573 HE ECO² DL Clear 1080 119 5668 ± 207 Cool 80 Clear 11142527161 LLED Barra 24V 145 CW653 ECO² DL Clear 951 104 6536 ± 279 Cool 80 Clear 11142532162 LLED Barra 24V 145 WW303 HE ECO² DL Frost 811 89 3045 ± 84 Warm 80 Frost 11142542162 LLED Barra 24V 145 WW303 E1 ECO² DL Frost 815 90 3045 ± 84 Warm 80 Frost 11142534162 LLED Barra 24V 145 NW403 HE ECO² DL Frost 848 93 3986 ± 144 Neutral 80 Frost 11142544162 LLED Barra 24V 145 NW403 E1 ECO² DL Frost 861 95 3986 ± 144 Neutral 80 Frost 11142525162 LLED Barra 24V 145 CW503 ECO² DL Frost 756 83 5029 ± 186 Cool 80 Frost 11142536162 LLED Barra 24V 145 CW573 HE ECO² DL Frost 848 93 5668 ± 207 Cool 80 Frost 11142527162 LLED Barra 24V 145 CW653 ECO² DL Frost 756 83 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 380 mA Power 9.1 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 112 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1519 F:1535 G:1504 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11150032161 LLED Barra 24V 150 WW303 HE ECO² DL Clear 1068 117 3045 ± 84 Warm 80 Clear 11150042161 LLED Barra 24V 150 WW303 E1 ECO² DL Clear 1108 122 3045 ± 84 Warm 80 Clear 11150034161 LLED Barra 24V 150 NW403 HE ECO² DL Clear 1117 123 3986 ± 144 Neutral 80 Clear 11150044161 LLED Barra 24V 150 NW403 E1 ECO² DL Clear 1171 129 3986 ± 144 Neutral 80 Clear 11150025161 LLED Barra 24V 150 CW503 ECO² DL Clear 983 108 5029 ± 186 Cool 80 Clear 11150036161 LLED Barra 24V 150 CW573 HE ECO² DL Clear 1117 123 5668 ± 207 Cool 80 Clear 11150027161 LLED Barra 24V 150 CW653 ECO² DL Clear 983 108 6536 ± 279 Cool 80 Clear 11150032162 LLED Barra 24V 150 WW303 HE ECO² DL Frost 839 92 3045 ± 84 Warm 80 Frost 11150042162 LLED Barra 24V 150 WW303 E1 ECO² DL Frost 843 93 3045 ± 84 Warm 80 Frost 11150034162 LLED Barra 24V 150 NW403 HE ECO² DL Frost 877 96 3986 ± 144 Neutral 80 Frost 11150044162 LLED Barra 24V 150 NW403 E1 ECO² DL Frost 891 98 3986 ± 144 Neutral 80 Frost 11150025162 LLED Barra 24V 150 CW503 ECO² DL Frost 782 86 5029 ± 186 Cool 80 Frost 11150036162 LLED Barra 24V 150 CW573 HE ECO² DL Frost 877 96 5668 ± 207 Cool 80 Frost 11150027162 LLED Barra 24V 150 CW653 ECO² DL Frost 782 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 404 mA Power 9.7 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 118 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1594 F:1610 G:1579 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11157532161 LLED Barra 24V 160 WW303 HE ECO² DL Clear 1126 116 3045 ± 84 Warm 80 Clear 11157542161 LLED Barra 24V 160 WW303 E1 ECO² DL Clear 1168 120 3045 ± 84 Warm 80 Clear 11157534161 LLED Barra 24V 160 NW403 HE ECO² DL Clear 1178 121 3986 ± 144 Neutral 80 Clear 11157544161 LLED Barra 24V 160 NW403 E1 ECO² DL Clear 1235 127 3986 ± 144 Neutral 80 Clear 11157525161 LLED Barra 24V 160 CW503 ECO² DL Clear 1036 107 5029 ± 186 Cool 80 Clear 11157536161 LLED Barra 24V 160 CW573 HE ECO² DL Clear 1178 121 5668 ± 207 Cool 80 Clear 11157527161 LLED Barra 24V 160 CW653 ECO² DL Clear 1036 107 6536 ± 279 Cool 80 Clear 11157532162 LLED Barra 24V 160 WW303 HE ECO² DL Frost 884 91 3045 ± 84 Warm 80 Frost 11157542162 LLED Barra 24V 160 WW303 E1 ECO² DL Frost 889 92 3045 ± 84 Warm 80 Frost 11157534162 LLED Barra 24V 160 NW403 HE ECO² DL Frost 925 95 3986 ± 144 Neutral 80 Frost 11157544162 LLED Barra 24V 160 NW403 E1 ECO² DL Frost 939 97 3986 ± 144 Neutral 80 Frost 11157525162 LLED Barra 24V 160 CW503 ECO² DL Frost 824 85 5029 ± 186 Cool 80 Frost 11157536162 LLED Barra 24V 160 CW573 HE ECO² DL Frost 925 95 5668 ± 207 Cool 80 Frost 11157527162 LLED Barra 24V 160 CW653 ECO² DL Frost 824 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 428 mA Power 10.3 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 124 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1669 F:1685 G:1654 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11165032161 LLED Barra 24V 170 WW303 HE ECO² DL Clear 1184 115 3045 ± 84 Warm 80 Clear 11165042161 LLED Barra 24V 170 WW303 E1 ECO² DL Clear 1228 119 3045 ± 84 Warm 80 Clear 11165034161 LLED Barra 24V 170 NW403 HE ECO² DL Clear 1238 120 3986 ± 144 Neutral 80 Clear 11165044161 LLED Barra 24V 170 NW403 E1 ECO² DL Clear 1298 126 3986 ± 144 Neutral 80 Clear 11165025161 LLED Barra 24V 170 CW503 ECO² DL Clear 1090 106 5029 ± 186 Cool 80 Clear 11165036161 LLED Barra 24V 170 CW573 HE ECO² DL Clear 1238 120 5668 ± 207 Cool 80 Clear 11165027161 LLED Barra 24V 170 CW653 ECO² DL Clear 1090 106 6536 ± 279 Cool 80 Clear 11165032162 LLED Barra 24V 170 WW303 HE ECO² DL Frost 929 90 3045 ± 84 Warm 80 Frost 11165042162 LLED Barra 24V 170 WW303 E1 ECO² DL Frost 934 91 3045 ± 84 Warm 80 Frost 11165034162 LLED Barra 24V 170 NW403 HE ECO² DL Frost 972 94 3986 ± 144 Neutral 80 Frost 11165044162 LLED Barra 24V 170 NW403 E1 ECO² DL Frost 988 96 3986 ± 144 Neutral 80 Frost 11165025162 LLED Barra 24V 170 CW503 ECO² DL Frost 867 84 5029 ± 186 Cool 80 Frost 11165036162 LLED Barra 24V 170 CW573 HE ECO² DL Frost 972 94 5668 ± 207 Cool 80 Frost 11165027162 LLED Barra 24V 170 CW653 ECO² DL Frost 867 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 452 mA Power 10.8 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 130 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1744 F:1760 G:1729 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11172532161 LLED Barra 24V 175 WW303 HE ECO² DL Clear 1241 115 3045 ± 84 Warm 80 Clear 11172542161 LLED Barra 24V 175 WW303 E1 ECO² DL Clear 1288 119 3045 ± 84 Warm 80 Clear 11172534161 LLED Barra 24V 175 NW403 HE ECO² DL Clear 1299 120 3986 ± 144 Neutral 80 Clear 11172544161 LLED Barra 24V 175 NW403 E1 ECO² DL Clear 1362 126 3986 ± 144 Neutral 80 Clear 11172525161 LLED Barra 24V 175 CW503 ECO² DL Clear 1143 106 5029 ± 186 Cool 80 Clear 11172536161 LLED Barra 24V 175 CW573 HE ECO² DL Clear 1299 120 5668 ± 207 Cool 80 Clear 11172527161 LLED Barra 24V 175 CW653 ECO² DL Clear 1143 106 6536 ± 279 Cool 80 Clear 11172532162 LLED Barra 24V 175 WW303 HE ECO² DL Frost 975 90 3045 ± 84 Warm 80 Frost 11172542162 LLED Barra 24V 175 WW303 E1 ECO² DL Frost 980 91 3045 ± 84 Warm 80 Frost 11172534162 LLED Barra 24V 175 NW403 HE ECO² DL Frost 1020 94 3986 ± 144 Neutral 80 Frost 11172544162 LLED Barra 24V 175 NW403 E1 ECO² DL Frost 1036 96 3986 ± 144 Neutral 80 Frost 11172525162 LLED Barra 24V 175 CW503 ECO² DL Frost 909 84 5029 ± 186 Cool 80 Frost 11172536162 LLED Barra 24V 175 CW573 HE ECO² DL Frost 1020 94 5668 ± 207 Cool 80 Frost 11172527162 LLED Barra 24V 175 CW653 ECO² DL Frost 909 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 476 mA Power 11.4 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 136 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1819 F:1835 G:1804 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11180032161 LLED Barra 24V 180 WW303 HE ECO² DL Clear 1299 114 3045 ± 84 Warm 80 Clear 11180042161 LLED Barra 24V 180 WW303 E1 ECO² DL Clear 1348 118 3045 ± 84 Warm 80 Clear 11180034161 LLED Barra 24V 180 NW403 HE ECO² DL Clear 1359 119 3986 ± 144 Neutral 80 Clear 11180044161 LLED Barra 24V 180 NW403 E1 ECO² DL Clear 1425 125 3986 ± 144 Neutral 80 Clear 11180025161 LLED Barra 24V 180 CW503 ECO² DL Clear 1196 105 5029 ± 186 Cool 80 Clear 11180036161 LLED Barra 24V 180 CW573 HE ECO² DL Clear 1359 119 5668 ± 207 Cool 80 Clear 11180027161 LLED Barra 24V 180 CW653 ECO² DL Clear 1196 105 6536 ± 279 Cool 80 Clear 11180032162 LLED Barra 24V 180 WW303 HE ECO² DL Frost 1020 90 3045 ± 84 Warm 80 Frost 11180042162 LLED Barra 24V 180 WW303 E1 ECO² DL Frost 1026 90 3045 ± 84 Warm 80 Frost 11180034162 LLED Barra 24V 180 NW403 HE ECO² DL Frost 1067 94 3986 ± 144 Neutral 80 Frost 11180044162 LLED Barra 24V 180 NW403 E1 ECO² DL Frost 1084 95 3986 ± 144 Neutral 80 Frost 11180025162 LLED Barra 24V 180 CW503 ECO² DL Frost 952 83 5029 ± 186 Cool 80 Frost 11180036162 LLED Barra 24V 180 CW573 HE ECO² DL Frost 1067 94 5668 ± 207 Cool 80 Frost 11180027162 LLED Barra 24V 180 CW653 ECO² DL Frost 952 83 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 475 mA Power 11.4 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 140 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1894 F:1910 G:1879 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11187532161 LLED Barra 24V 190 WW303 HE ECO² DL Clear 1335 117 3045 ± 84 Warm 80 Clear 11187542161 LLED Barra 24V 190 WW303 E1 ECO² DL Clear 1385 121 3045 ± 84 Warm 80 Clear 11187534161 LLED Barra 24V 190 NW403 HE ECO² DL Clear 1396 122 3986 ± 144 Neutral 80 Clear 11187544161 LLED Barra 24V 190 NW403 E1 ECO² DL Clear 1464 128 3986 ± 144 Neutral 80 Clear 11187525161 LLED Barra 24V 190 CW503 ECO² DL Clear 1229 108 5029 ± 186 Cool 80 Clear 11187536161 LLED Barra 24V 190 CW573 HE ECO² DL Clear 1396 122 5668 ± 207 Cool 80 Clear 11187527161 LLED Barra 24V 190 CW653 ECO² DL Clear 1229 108 6536 ± 279 Cool 80 Clear 11187532162 LLED Barra 24V 190 WW303 HE ECO² DL Frost 1048 92 3045 ± 84 Warm 80 Frost 11187542162 LLED Barra 24V 190 WW303 E1 ECO² DL Frost 1054 92 3045 ± 84 Warm 80 Frost 11187534162 LLED Barra 24V 190 NW403 HE ECO² DL Frost 1097 96 3986 ± 144 Neutral 80 Frost 11187544162 LLED Barra 24V 190 NW403 E1 ECO² DL Frost 1114 98 3986 ± 144 Neutral 80 Frost 11187525162 LLED Barra 24V 190 CW503 ECO² DL Frost 978 86 5029 ± 186 Cool 80 Frost 11187536162 LLED Barra 24V 190 CW573 HE ECO² DL Frost 1097 96 5668 ± 207 Cool 80 Frost 11187527162 LLED Barra 24V 190 CW653 ECO² DL Frost 978 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 499 mA Power 12.0 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 146 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:1969 F:1985 G:1954 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11195032161 LLED Barra 24V 195 WW303 HE ECO² DL Clear 1393 116 3045 ± 84 Warm 80 Clear 11195042161 LLED Barra 24V 195 WW303 E1 ECO² DL Clear 1445 120 3045 ± 84 Warm 80 Clear 11195034161 LLED Barra 24V 195 NW403 HE ECO² DL Clear 1457 121 3986 ± 144 Neutral 80 Clear 11195044161 LLED Barra 24V 195 NW403 E1 ECO² DL Clear 1527 127 3986 ± 144 Neutral 80 Clear 11195025161 LLED Barra 24V 195 CW503 ECO² DL Clear 1282 107 5029 ± 186 Cool 80 Clear 11195036161 LLED Barra 24V 195 CW573 HE ECO² DL Clear 1457 121 5668 ± 207 Cool 80 Clear 11195027161 LLED Barra 24V 195 CW653 ECO² DL Clear 1282 107 6536 ± 279 Cool 80 Clear 11195032162 LLED Barra 24V 195 WW303 HE ECO² DL Frost 1094 91 3045 ± 84 Warm 80 Frost 11195042162 LLED Barra 24V 195 WW303 E1 ECO² DL Frost 1099 92 3045 ± 84 Warm 80 Frost 11195034162 LLED Barra 24V 195 NW403 HE ECO² DL Frost 1144 95 3986 ± 144 Neutral 80 Frost 11195044162 LLED Barra 24V 195 NW403 E1 ECO² DL Frost 1162 97 3986 ± 144 Neutral 80 Frost 11195025162 LLED Barra 24V 195 CW503 ECO² DL Frost 1020 85 5029 ± 186 Cool 80 Frost 11195036162 LLED Barra 24V 195 CW573 HE ECO² DL Frost 1144 95 5668 ± 207 Cool 80 Frost 11195027162 LLED Barra 24V 195 CW653 ECO² DL Frost 1020 85 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 523 mA Power 12.6 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 152 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2044 F:2060 G:2029 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11202532161 LLED Barra 24V 200 WW303 HE ECO² DL Clear 1451 115 3045 ± 84 Warm 80 Clear 11202542161 LLED Barra 24V 200 WW303 E1 ECO² DL Clear 1505 119 3045 ± 84 Warm 80 Clear 11202534161 LLED Barra 24V 200 NW403 HE ECO² DL Clear 1517 120 3986 ± 144 Neutral 80 Clear 11202544161 LLED Barra 24V 200 NW403 E1 ECO² DL Clear 1591 126 3986 ± 144 Neutral 80 Clear 11202525161 LLED Barra 24V 200 CW503 ECO² DL Clear 1336 106 5029 ± 186 Cool 80 Clear 11202536161 LLED Barra 24V 200 CW573 HE ECO² DL Clear 1517 120 5668 ± 207 Cool 80 Clear 11202527161 LLED Barra 24V 200 CW653 ECO² DL Clear 1336 106 6536 ± 279 Cool 80 Clear 11202532162 LLED Barra 24V 200 WW303 HE ECO² DL Frost 1139 90 3045 ± 84 Warm 80 Frost 11202542162 LLED Barra 24V 200 WW303 E1 ECO² DL Frost 1145 91 3045 ± 84 Warm 80 Frost 11202534162 LLED Barra 24V 200 NW403 HE ECO² DL Frost 1192 95 3986 ± 144 Neutral 80 Frost 11202544162 LLED Barra 24V 200 NW403 E1 ECO² DL Frost 1210 96 3986 ± 144 Neutral 80 Frost 11202525162 LLED Barra 24V 200 CW503 ECO² DL Frost 1062 84 5029 ± 186 Cool 80 Frost 11202536162 LLED Barra 24V 200 CW573 HE ECO² DL Frost 1192 95 5668 ± 207 Cool 80 Frost 11202527162 LLED Barra 24V 200 CW653 ECO² DL Frost 1062 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 546 mA Power 13.1 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 158 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2119 F:2135 G:2104 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11210032161 LLED Barra 24V 210 WW303 HE ECO² DL Clear 1508 115 3045 ± 84 Warm 80 Clear 11210042161 LLED Barra 24V 210 WW303 E1 ECO² DL Clear 1565 119 3045 ± 84 Warm 80 Clear 11210034161 LLED Barra 24V 210 NW403 HE ECO² DL Clear 1578 120 3986 ± 144 Neutral 80 Clear 11210044161 LLED Barra 24V 210 NW403 E1 ECO² DL Clear 1654 126 3986 ± 144 Neutral 80 Clear 11210025161 LLED Barra 24V 210 CW503 ECO² DL Clear 1389 106 5029 ± 186 Cool 80 Clear 11210036161 LLED Barra 24V 210 CW573 HE ECO² DL Clear 1578 120 5668 ± 207 Cool 80 Clear 11210027161 LLED Barra 24V 210 CW653 ECO² DL Clear 1389 106 6536 ± 279 Cool 80 Clear 11210032162 LLED Barra 24V 210 WW303 HE ECO² DL Frost 1185 90 3045 ± 84 Warm 80 Frost 11210042162 LLED Barra 24V 210 WW303 E1 ECO² DL Frost 1191 91 3045 ± 84 Warm 80 Frost 11210034162 LLED Barra 24V 210 NW403 HE ECO² DL Frost 1239 95 3986 ± 144 Neutral 80 Frost 11210044162 LLED Barra 24V 210 NW403 E1 ECO² DL Frost 1259 96 3986 ± 144 Neutral 80 Frost 11210025162 LLED Barra 24V 210 CW503 ECO² DL Frost 1105 84 5029 ± 186 Cool 80 Frost 11210036162 LLED Barra 24V 210 CW573 HE ECO² DL Frost 1239 95 5668 ± 207 Cool 80 Frost 11210027162 LLED Barra 24V 210 CW653 ECO² DL Frost 1105 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 571 mA Power 13.7 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 164 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2194 F:2210 G:2179 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11217532161 LLED Barra 24V 220 WW303 HE ECO² DL Clear 1566 114 3045 ± 84 Warm 80 Clear 11217542161 LLED Barra 24V 220 WW303 E1 ECO² DL Clear 1625 119 3045 ± 84 Warm 80 Clear 11217534161 LLED Barra 24V 220 NW403 HE ECO² DL Clear 1639 120 3986 ± 144 Neutral 80 Clear 11217544161 LLED Barra 24V 220 NW403 E1 ECO² DL Clear 1718 125 3986 ± 144 Neutral 80 Clear 11217525161 LLED Barra 24V 220 CW503 ECO² DL Clear 1442 105 5029 ± 186 Cool 80 Clear 11217536161 LLED Barra 24V 220 CW573 HE ECO² DL Clear 1639 120 5668 ± 207 Cool 80 Clear 11217527161 LLED Barra 24V 220 CW653 ECO² DL Clear 1442 105 6536 ± 279 Cool 80 Clear 11217532162 LLED Barra 24V 220 WW303 HE ECO² DL Frost 1230 90 3045 ± 84 Warm 80 Frost 11217542162 LLED Barra 24V 220 WW303 E1 ECO² DL Frost 1236 90 3045 ± 84 Warm 80 Frost 11217534162 LLED Barra 24V 220 NW403 HE ECO² DL Frost 1287 94 3986 ± 144 Neutral 80 Frost 11217544162 LLED Barra 24V 220 NW403 E1 ECO² DL Frost 1307 95 3986 ± 144 Neutral 80 Frost 11217525162 LLED Barra 24V 220 CW503 ECO² DL Frost 1147 84 5029 ± 186 Cool 80 Frost 11217536162 LLED Barra 24V 220 CW573 HE ECO² DL Frost 1287 94 5668 ± 207 Cool 80 Frost 11217527162 LLED Barra 24V 220 CW653 ECO² DL Frost 1147 84 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.68 Specifications subject to change without notice.
-
TECHNICAL FEATURES:
Power source Class II constant voltage external LED drive power supply Voltage 24 ± 3 V DC Current 570 mA Power 13.7 ±0.5W Useful Lifetime 60.000 hours (L70 - 55ºC @ 65%H) * Beam angle 120 ± 5º ** Field angle Clear: 135 ± 5º Frost: 195 ± 5º *** Nr of LEDs 168 - SMD Working Temp. -20 to 40 ºC Isolation Class III Protection degree IP42 Lumen maintenance LM80 (Report available: LM-80 9000hrs) Certificate CE / RoHs Dimensions (mm) A:15 B:12 C:20 D:17 E:2269 F:2285 G:2254 *Luminosity depreciation based on L70.
**Beam angle: 50% of maximum lum.
***Field angle: 10% of maximum lum.LIGHT TECHNICAL DATA:
Reference Description Lum. flux (Lm)* Eff. (Lm/W) Color Temp. (K)** Color CRI > Lens type LDT 11225032161 LLED Barra 24V 225 WW303 HE ECO² DL Clear 1602 117 3045 ± 84 Warm 80 Clear 11225042161 LLED Barra 24V 225 WW303 E1 ECO² DL Clear 1662 121 3045 ± 84 Warm 80 Clear 11225034161 LLED Barra 24V 225 NW403 HE ECO² DL Clear 1676 122 3986 ± 144 Neutral 80 Clear 11225044161 LLED Barra 24V 225 NW403 E1 ECO² DL Clear 1757 128 3986 ± 144 Neutral 80 Clear 11225025161 LLED Barra 24V 225 CW503 ECO² DL Clear 1475 108 5029 ± 186 Cool 80 Clear 11225036161 LLED Barra 24V 225 CW573 HE ECO² DL Clear 1676 122 5668 ± 207 Cool 80 Clear 11225027161 LLED Barra 24V 225 CW653 ECO² DL Clear 1475 108 6536 ± 279 Cool 80 Clear 11225032162 LLED Barra 24V 225 WW303 HE ECO² DL Frost 1258 92 3045 ± 84 Warm 80 Frost 11225042162 LLED Barra 24V 225 WW303 E1 ECO² DL Frost 1264 92 3045 ± 84 Warm 80 Frost 11225034162 LLED Barra 24V 225 NW403 HE ECO² DL Frost 1316 96 3986 ± 144 Neutral 80 Frost 11225044162 LLED Barra 24V 225 NW403 E1 ECO² DL Frost 1337 98 3986 ± 144 Neutral 80 Frost 11225025162 LLED Barra 24V 225 CW503 ECO² DL Frost 1173 86 5029 ± 186 Cool 80 Frost 11225036162 LLED Barra 24V 225 CW573 HE ECO² DL Frost 1316 96 5668 ± 207 Cool 80 Frost 11225027162 LLED Barra 24V 225 CW653 ECO² DL Frost 1173 86 6536 ± 279 Cool 80 Frost * Luminous flux ± 7.5%
* Other color temperatures available uppon requestDatasheet EEI Label Update 2019-11-11 Datasheet v1.67 Specifications subject to change without notice.
× REFERENCES CODE: XXYYZZ - The last six digits are additional options. XX - Bar body finishing.  Natural AluminumXX=01  White AluminumXX=02  Brown AluminumXX=03  PolycarbonateXX=81 YY - Bar connection.  Top Input cableYY=01  Male connector input - 1C2PYY=04  Male connector input female connector output - 2C2PYY=06  Top Input cable ouput connector - 1C2P+STopoYY=08 ZZ - Cable type.  Without connectorZZ=00  ASQC2 ConnectorZZ=27  DCJ ConnectorZZ=41  DC24 ConnectorZZ=46
|
|
       | |
Natural Aluminum
White Aluminum
Brown Aluminum
Polycarbonate
Clear
Frost
Top Input cable
Male connector input - 1C2P
Male connector input female connector output - 2C2P
Top Input cable ouput connector - 1C2P+STopo
- ×
Unit of measurement: mm

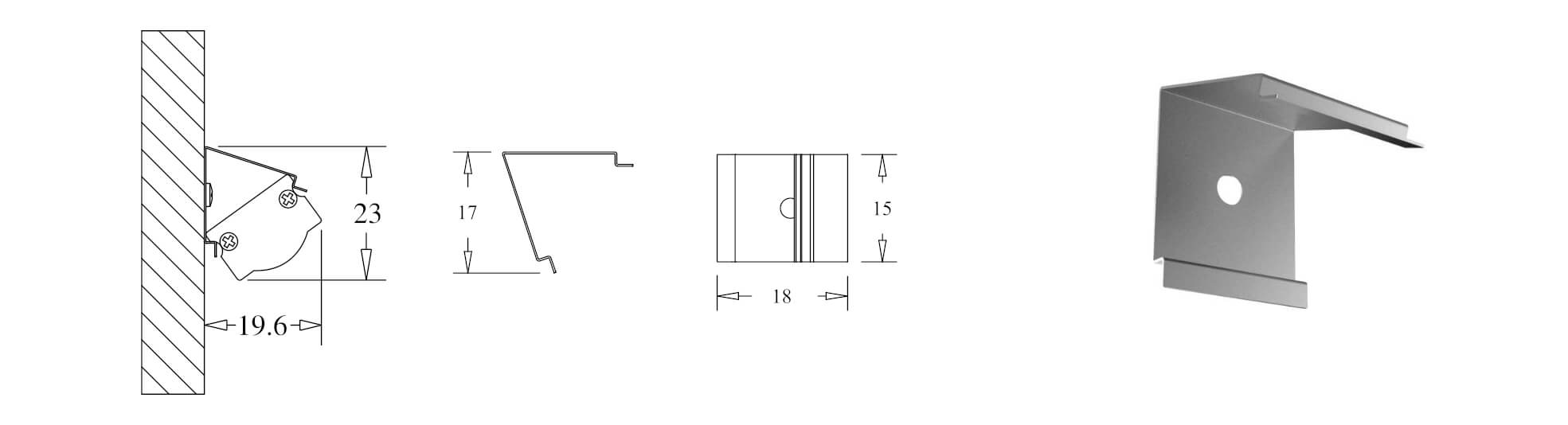

180º Clip w/ 45º base Cod: 8400035115180º Clip w/ 45º base
×
Unit of measurement: mm
180 º Fix clip Cod: 8400035111180 º Fix clip
×
Unit of measurement: mm
45 º Fix clip Cod: 840003511245 º Fix clip
×
Unit of measurement: mm
Rotating clip Cod: 8400035114Rotating clip
×
Unit of measurement: mm
180 º PVC support Type: 180º
Silicone cap without hole BR:8400033071 CZ:8400033081
Silicone cap with hole BR:8400033072 CZ:8400033082180 º PVC clip
×
Unit of measurement: mm
45 º PVC support Type: 45º
Silicone cap without hole BR Right:8400033076 CZ:8400033086
Silicone cap with hole BR Left:8400033075 CZ:840003308545 º PVC clip
×
Unit of measurement: mm
Corner PVC support Type: Corner
Silicone cap without hole BR:8400033073 CZ:8400033083
Silicone cap with hole BR:8400033074 CZ:8400033084Corner PVC clip
×
Unit of measurement: mm
180º Fixation clip - Polycarbonate Cod: 8400035117180º Fixing clip - Polycarbonate
×
Unit of measurement: mm
Fixation support - Polycarbonate Cod: 8400035119Fixing support - Policarbonate
Cool white 5000K 3SDCM
Cool white 6500K 3SDCM
